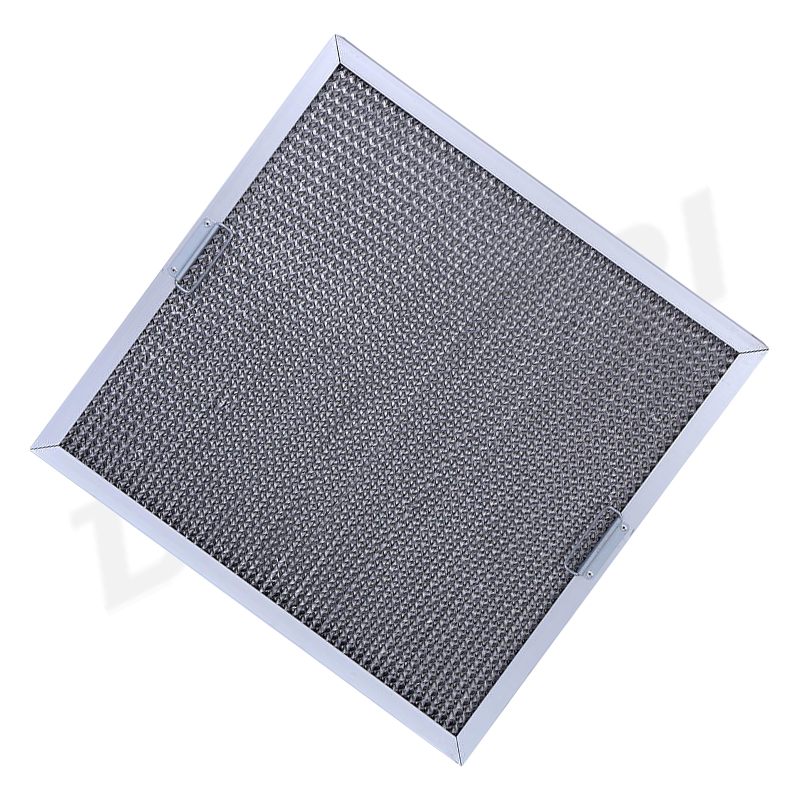

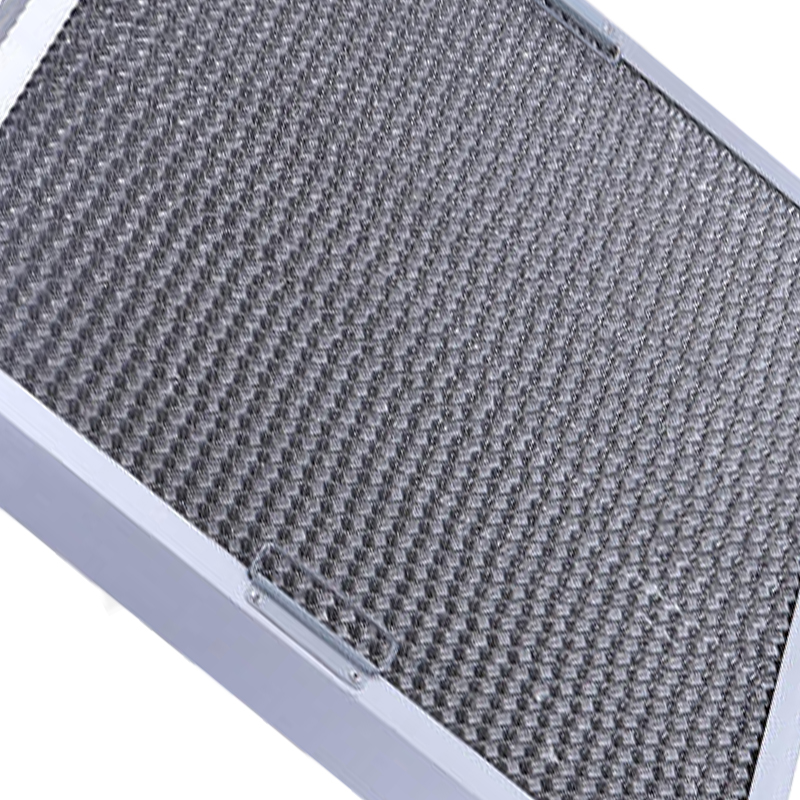

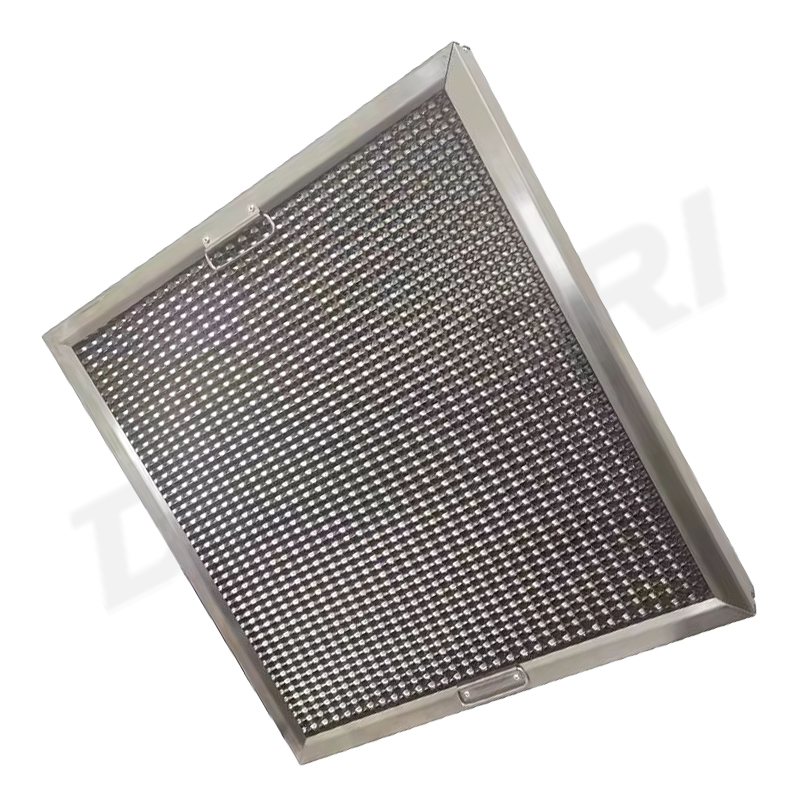

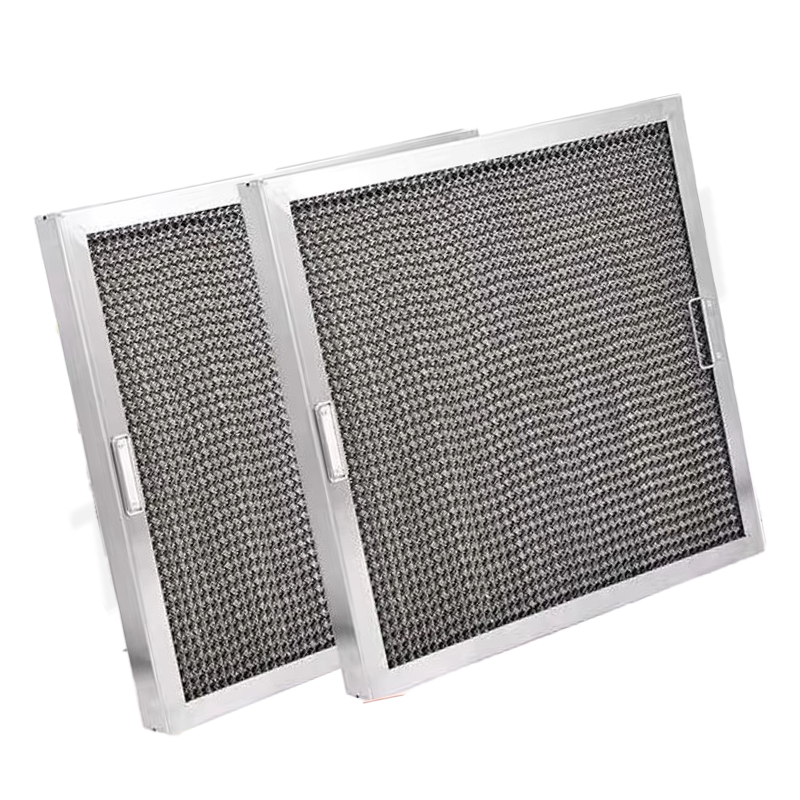

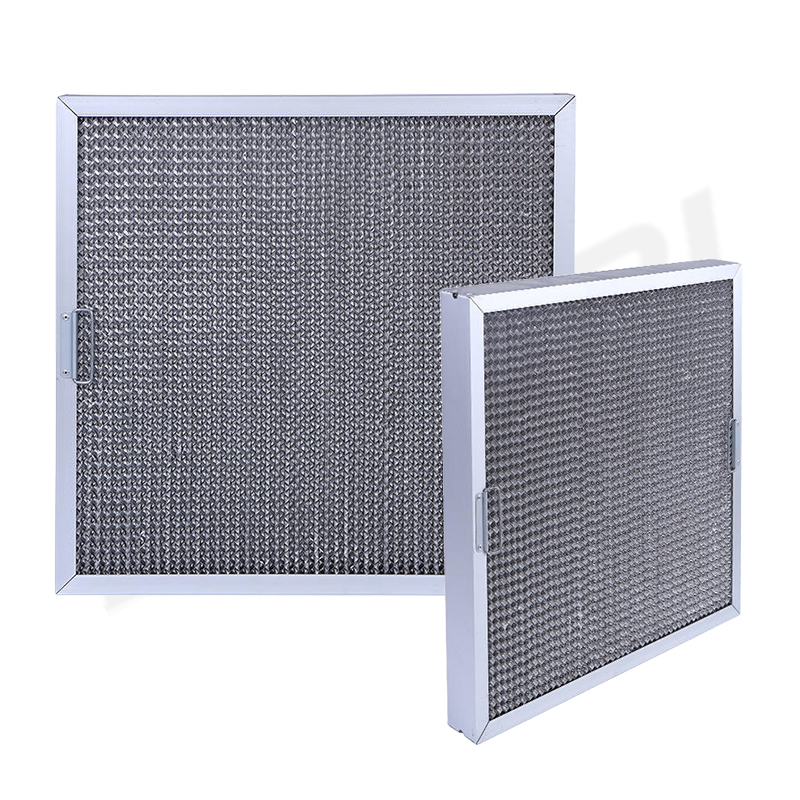

CYCYL series smoke and oil removal plate frame filter element

The CYCYL series smoke and oil removal plate frame filter element is specially designed for efficient treatment of oil mist, smoke, and fine particles in industrial environments. This filter element uses stainless steel woven mesh and sintered felt as the core filtration media, and adopts a plate and frame structure design. It achieves dual effects of oil mist condensation and smoke interception through multi-stage gradient filter layers. As a powerful upgrade solution for traditional filter cloth and filter paper frame filter elements, this product comprehensively surpasses in high temperature resistance, corrosion resistance, moisture resistance, anti sticking, and service life. It can be widely adapted to various plate and frame filtration equipment, helping enterprises achieve the dual goals of workshop air emission standards and oil circulation purification.

The CYCYL series smoke and oil removal plate and frame filter element adopts a plate and frame stacked structure. The filter material is precision formed through multi-layer folding and corrugated technology, and the mesh size gradually decreases from the outside to the inside. The flow direction of oil mist and smoke particles changes multiple times when passing through, greatly improving the capture efficiency. The filter frame is made of high-strength punched stainless steel plate, and the end cover is sealed with oil resistant rubber O-ring to ensure excellent airtightness even under high temperature and high humidity conditions. The filtration accuracy can reach 3-10 microns, the oil removal efficiency is as high as 99.99%, the working temperature covers -10 ℃ to+200 ℃, and the maximum withstand pressure difference is 0.2MPa. The filter element supports backwashing and ultrasonic cleaning regeneration, can be reused, effectively extends the replacement cycle, and significantly reduces operation and maintenance costs.

The CYCYL series smoke and oil removal plate frame filter element has a wide range of applications: laser cutting dust removal - suitable for laser cutting workshops with high concentration fine particles and wet dust, with a filtration efficiency of 99.99%; Painting and spray painting workshop - intercept the oil mist and paint mist generated during the painting process to ensure the air quality in the workshop; Oil fume purification - efficient separation and purification of oil fume in catering and industrial kitchens; Compressed air degreasing - in conjunction with an degreaser system, removes oil mist and particles from compressed air, and the oil content can be controlled below 1mg/m ³; Welding smoke control - combined filtration of metal smoke and oil mist generated during welding, polishing and other processes; Food oil refining - precise interception of impurities and colloids in edible oil production to ensure clear oil and no backmixing.

Compared to traditional plate and frame filter element, the CYCYL series of smoke and oil removal plate and frame filter element can be regarded as the "hardcore guardians" in the field of smoke and oil removal. Firstly, it has an extremely long lifespan - with an average service life of 2000-3000 hours, which is more than three times longer than traditional filter cloth; Secondly, moisture resistance and anti sticking - the surface is treated with hydrophobic agents, making it less prone to dust adhesion in high humidity environments and more thorough dust removal; Thirdly, temperature and pressure resistance - the stainless steel skeleton structure has strong pressure bearing capacity and can withstand high temperatures of 200 ℃ without deformation; Fourth, renewable use - supports backwashing and ultrasonic cleaning, significantly reducing consumable costs; Fifth, high filtration accuracy - uniform pore size of 3 microns, achieving one-step oil and smoke removal.

The decrease in filtration efficiency and excessive oil content in the outlet are usually caused by the accumulation of oil film on the surface of the filter material or the failure of the filter aid layer. It is recommended to regularly backwash and clean, replace the filter element if necessary, and optimize the ratio of filter aid. Leakage or dripping of the panel frame is often caused by aging of the sealing ring or insufficient clamping force. The flatness of the sealing surface should be checked, the O-ring should be replaced, and the clamping force should be moderately increased. If the operating pressure difference rises too quickly, it is generally due to high oil mist concentration or severe filter layer blockage. It is necessary to control the feed concentration, add filter aids in stages, and reduce the single filtration load. Filter deformation or rupture is often caused by operating pressure exceeding the design value. The operating pressure difference should be strictly controlled within the allowable range to avoid overpressure operation.
