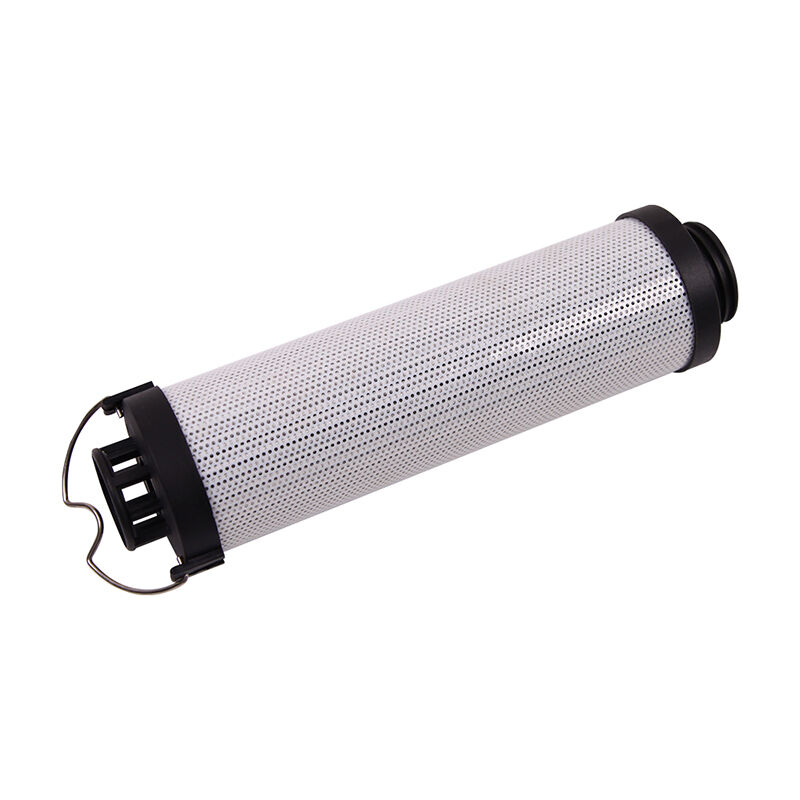

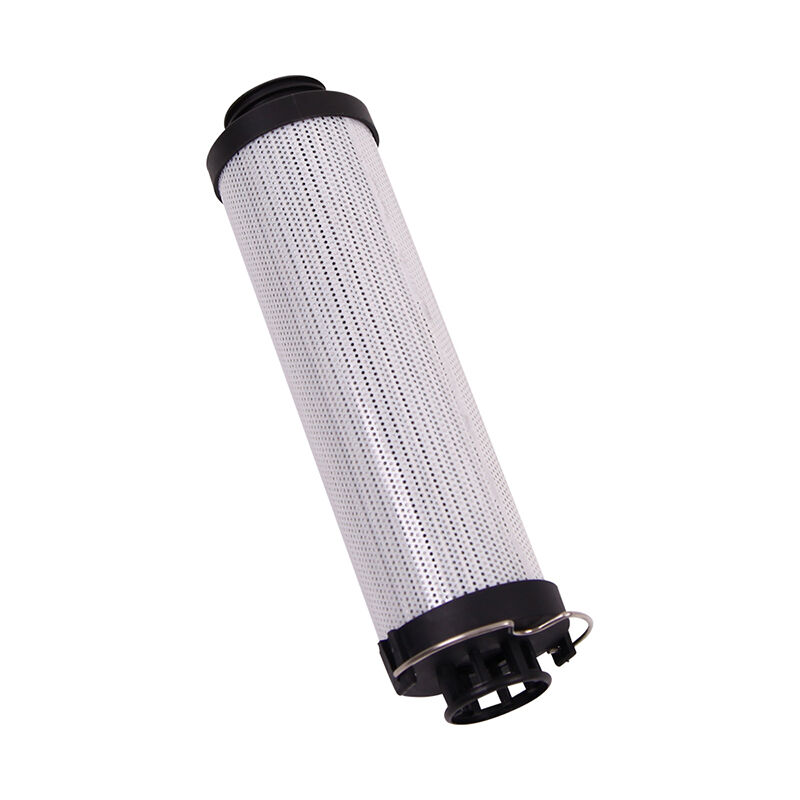

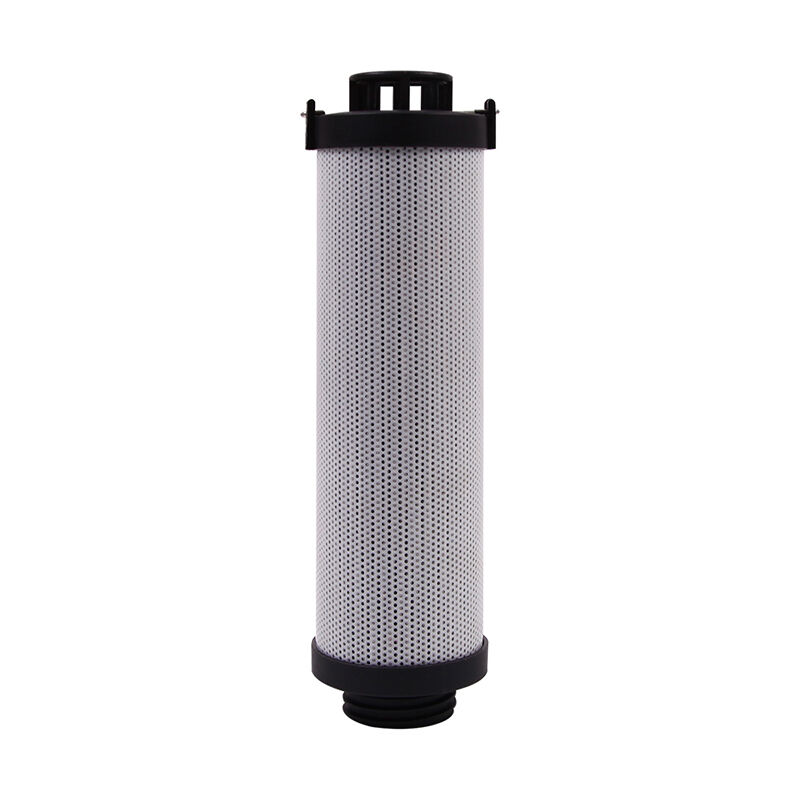

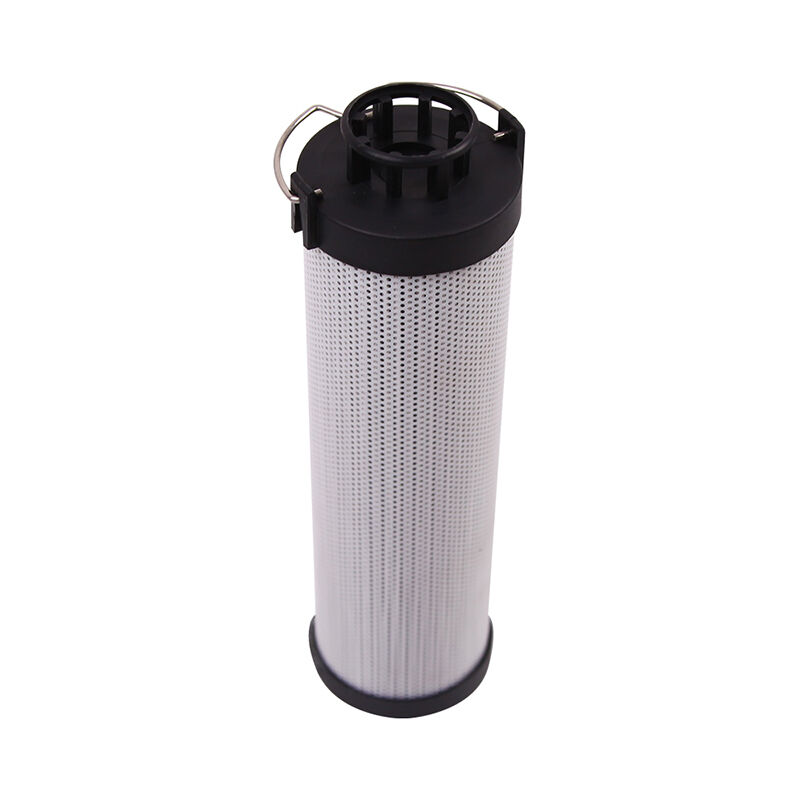

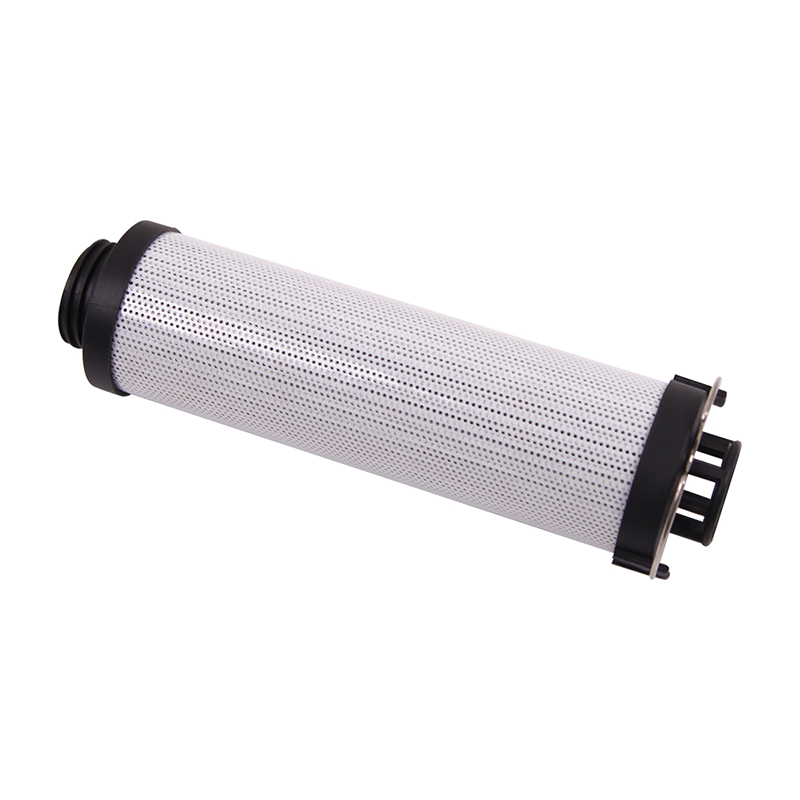

Replacement 0060D series filter element

In industrial hydraulic systems, oil cleanliness is the core element to ensure stable operation and prolong the service life of equipment. However, as the equipment operates for a long time, impurities such as metal particles and gel like substances are inevitably mixed into the oil. If not filtered in time, it will lead to increased system wear and frequent malfunctions. replacement 0060D series filter element as a high-performance filtration solution, it has become the preferred product in industries such as metallurgy, petrochemicals, wind power, and engineering machinery due to its precise filtration, pressure resistance, and durability.

The replacement 0060D series filter element is replaced by a composite filter material of glass fiber and stainless steel mesh, which increases the filtration area through a multi-layer folding structure and can efficiently intercept solid particles and gel like pollutants ranging from 1-100 μ m. The core design highlights include the following aspects.

1. High pollutant carrying capacity, uniform pore size of filter material, can accommodate more impurities, extend replacement cycle, and reduce downtime maintenance frequency.

2. Strong pressure resistance, the skeleton is made of high-strength stainless steel material, which can withstand a working pressure of up to 210 bar and adapt to high-pressure working conditions.

3. Wide compatibility, supporting various media such as mineral oil, phosphate hydraulic oil, emulsion, water ethylene glycol, etc., to meet the needs of different industries.

4. Reliable sealing, equipped with fluororubber or nitrile rubber sealing rings to prevent oil leakage and ensure system stability.

The replacement 0060D series filter element has been widely used in the following fields to solve targeted filtration problems in various industries.

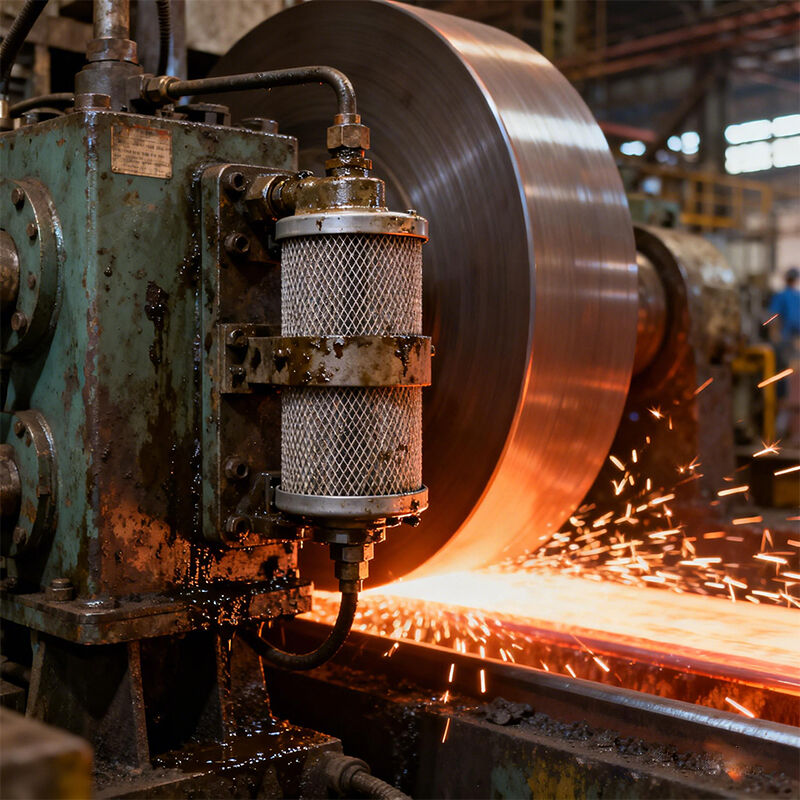

1. Metallurgical industry

In the hydraulic systems of rolling mills and continuous casting machines, metal particles generated by high-temperature oxidation are filtered out to avoid servo valve jamming and ensure continuous operation of equipment.

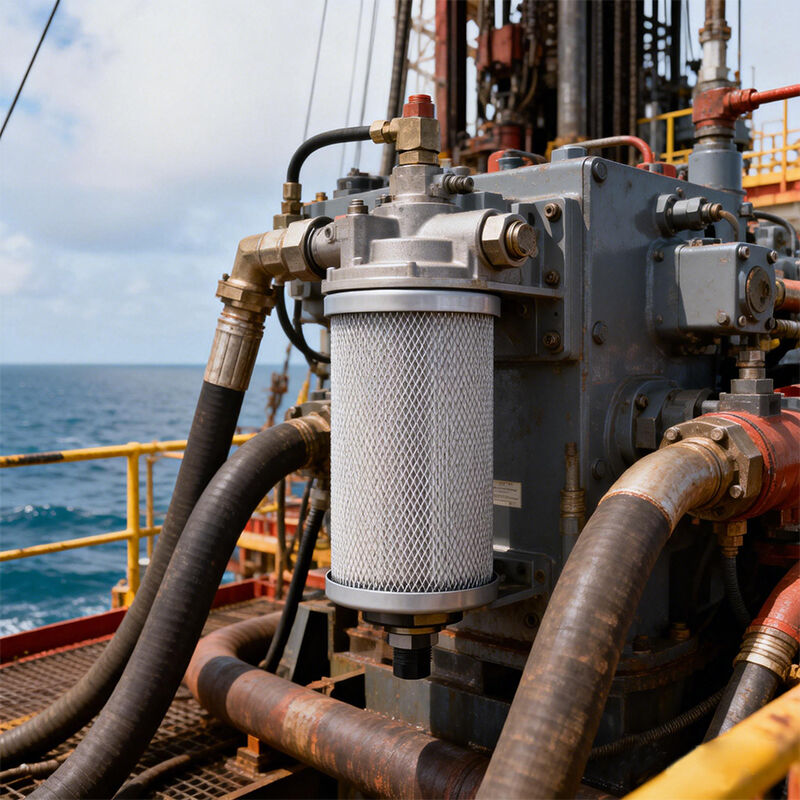

2. Petrochemical and Energy

Used for refining equipment, oilfield water injection systems, and natural gas filtration, with strong corrosion resistance, can intercept chemical pollutants, and extend equipment life.

3. Wind power equipment

In the gearbox lubrication system, the oil cleanliness is increased to NAS level 6 to reduce gear wear and lower the fan failure rate.

4. Construction machinery

Suitable for hydraulic return systems of excavators and concrete pump trucks, supporting high-frequency start stop to prevent impurities from blocking key components.

5. Automotive industry

used for engine oil filters, fuel filters, and hydraulic systems to improve mechanical reliability and reduce maintenance costs.

6. Textile and papermaking

Purification of polyester melt and lubrication system for papermaking machinery to ensure production continuity and avoid downtime losses caused by oil contamination.

Compared to traditional filter cartridges, replacing the 0060D series filter cartridge has significant advantages in technical parameters and service support.

1. Higher filtration efficiency

Glass fiber filter material has a fine fiber diameter and a large specific surface area, which can capture small particles and achieve a filtration efficiency of over 99%.

2. Longer service life

Designed to withstand high temperatures and corrosion, it can still operate stably under harsh conditions, and the lifespan of the filter element is extended to over 1 year.

3. Lower pressure drop loss

The filter material has strong permeability, small initial pressure drop, reduces system energy consumption, and maintains normal oil pressure.

4. Outstanding cost-effectiveness

The price is only 60% of that of imported brands, while providing customized services to reduce full lifecycle costs.

5. Comprehensive service guarantee

supports fast delivery, technical consultation, and after-sales maintenance to ensure that users have no worries.

Although the 0060D series filter cartridge has excellent performance, improper use may still cause problems. The following are common faults and their corresponding solutions:

1. The filter element is clogged too quickly

Reason: The initial pollution level of the system exceeds the standard, or the pre filtration device is missing.

Solution: Install an oil suction filter at the front end of the return oil pipeline and regularly check the cleanliness of the oil.

2. The bypass valve frequently opens

Reason: The system pressure is too high or the filter selection is too small.

Solution: Adjust the system pressure to the normal working range of the filter element, or replace the filter element with a larger filtering area.

3. Leakage of seals

Reason: The sealing ring is aging or improperly installed.

Solution: Replace the sealing ring and strictly follow the installation instructions to ensure good sealing between the filter element and the interface.

4. Damaged filter element

Reason: Frequent start stop of the system can cause hydraulic shock or excessive water content in the oil.

Solution: Install an accumulator to buffer pressure and check the water content of the oil.
