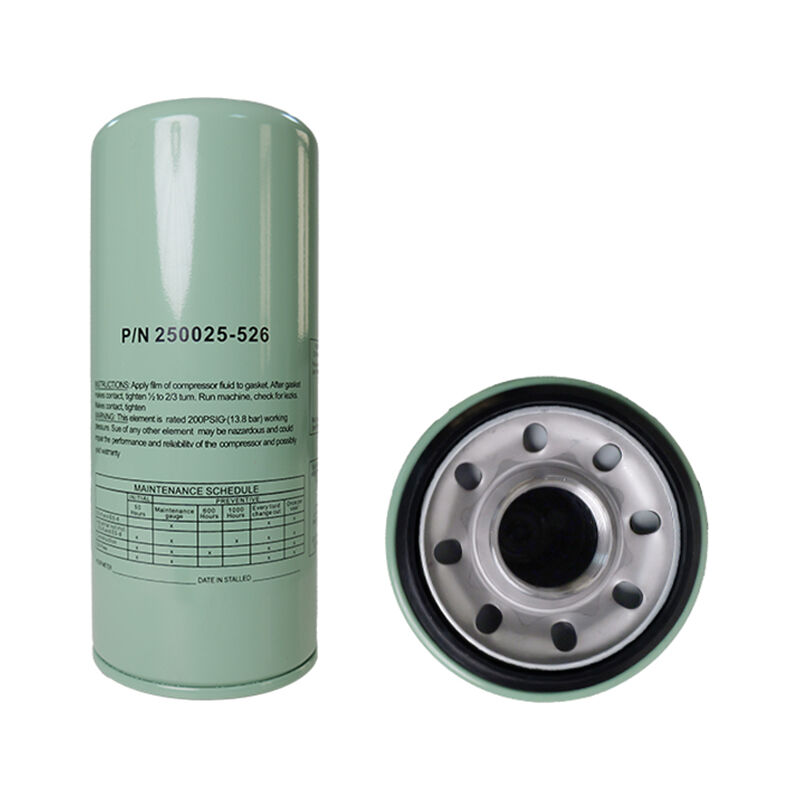

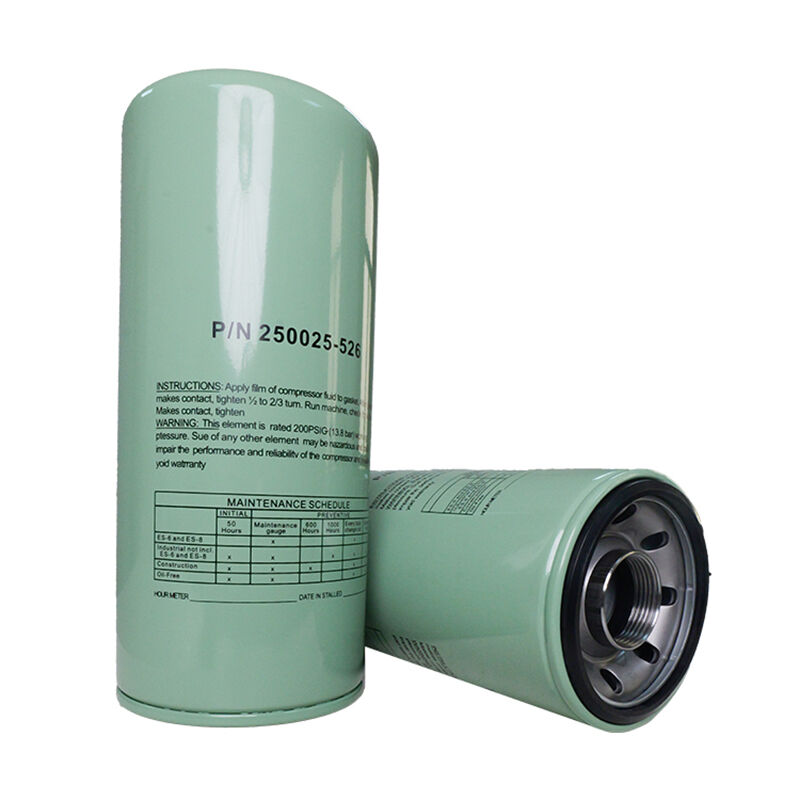

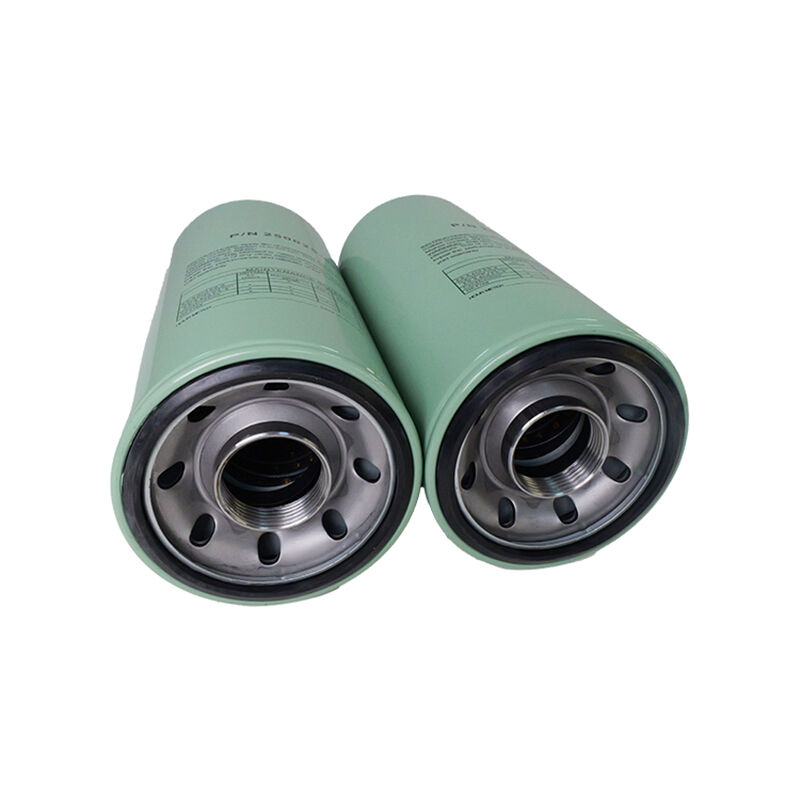

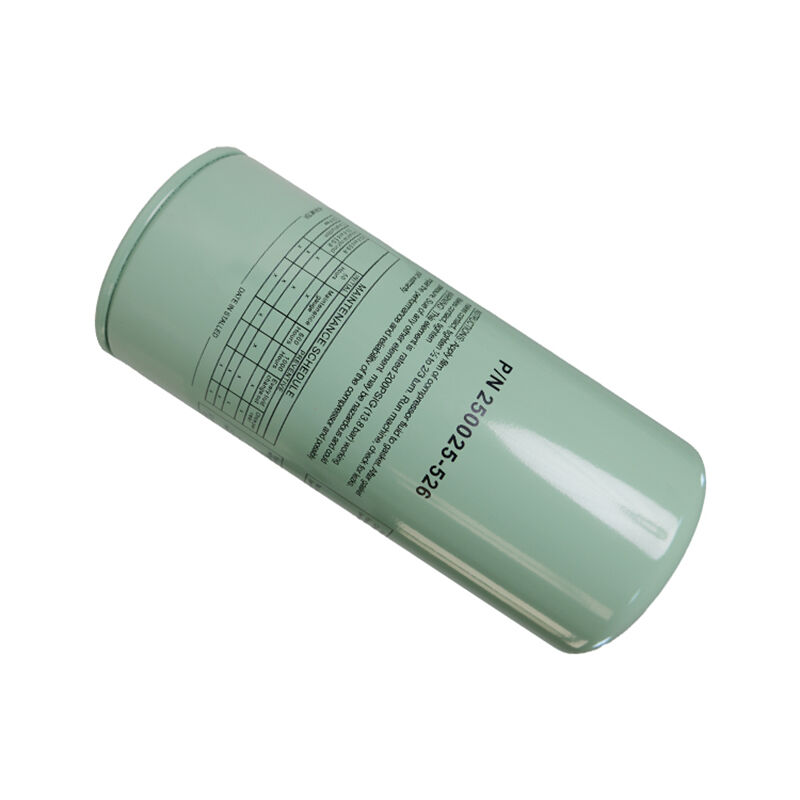

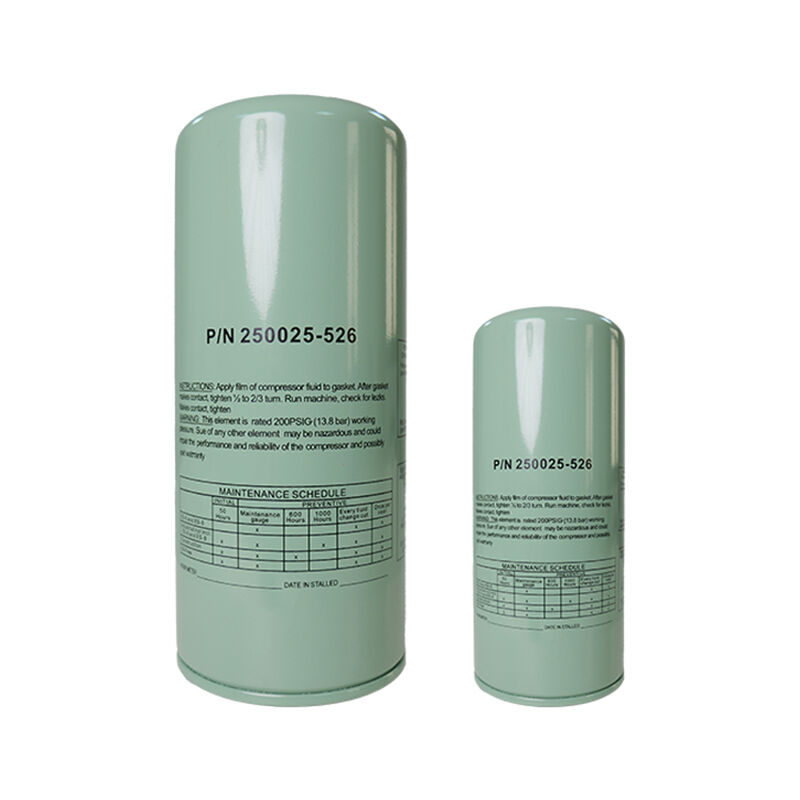

P/N 250025-526 Lubricat Oil Filter Element

The P/N 250025-526 Lubricat Oil Filter Element is an efficient filtration device designed specifically for industrial lubrication systems. Its core function is to remove impurities such as metal particles, oxidation products, and gel precipitates from the lubricating oil, ensuring that the oil cleanliness meets the requirements for equipment operation. This filter uses foldable glass fiber filter material with a filtration accuracy of 10 microns, which can effectively intercept small pollutants. It also has high temperature resistance and corrosion resistance characteristics, with a working temperature range covering -10 ℃ to 100 ℃, suitable for high-pressure conditions (working pressure 1.6-32MPa).

1. Structure and Material of P/N 250025-526 Lubricat Oil Filter Element

Filter material: Imported ultra-fine glass fiber composite filter material is selected, with uniform fiber diameter, controllable porosity, forming a gradient filtration structure, and improving pollutant holding capacity.

Supporting structure: Adopting high-strength stainless steel skeleton to ensure that the filter does not deform under high pressure environment and extends its service life.

Sealing design: equipped with high-temperature resistant rubber sealing rings to prevent oil leakage, compatible with standard interfaces, and easy to install.

2. Performance parameters of P/N 250025-526 Lubricat Oil Filter Element

Initial pressure difference: ≤ 1.6MPa, ensuring low resistance to oil flow and reducing energy loss.

Service life: It can reach 3500-5200 hours under normal working conditions, and the specific service life is affected by oil quality, environmental temperature, and pollutant concentration.

Filtration efficiency: The interception rate for particles over 10 microns is ≥ 99%, significantly reducing the risk of equipment wear.

1. Air compressor system

The P/N 250025-526 Lubricat Oil Filter Element serves as the core filtering component of the screw air compressor, ensuring the cleanliness of the compressor oil, preventing blockage of the oil-gas separator, and extending the service life of the main engine.

2. Industrial hydraulic system

suitable for hydraulic oil filtration of equipment such as rolling mills, continuous casting machines, injection molding machines, etc., to maintain stable system pressure and reduce hydraulic valve failures.

3. Energy and Electricity

Used in the lubricating oil circulation system of gas turbines and wind turbines to resist the erosion of bearings by high-temperature oxidation products.

4. Ships and heavy machinery

In scenarios such as ship diesel engines and mining excavators, filter moisture and metal debris from lubricating oil to prevent corrosion and wear.

1. Efficient filtration

Gradient filter material design achieves deep filtration, with a 30% increase in pollutant capacity compared to traditional filter cartridges, reducing replacement frequency.

2. Long lifespan

Glass fiber material has strong resistance to chemical corrosion and can maintain structural integrity even under harsh working conditions, reducing maintenance costs.

3. Wide compatibility

Suitable for various industrial equipment interface standards, can replace similar imported products, and shorten the procurement cycle.

4. Environmental protection and energy conservation

Low pressure drop design reduces oil pump load, lowers energy consumption, and conforms to the trend of green manufacturing.

Problem 1: Filter blockage alarm

Reason: Excessive pollutants in the oil or expiration of the filter material's lifespan.

Solution: Check the cleanliness of the oil and replace the filter element in advance; If there is frequent blockage, it is necessary to check the sealing of the system to prevent external impurities from entering.

Problem 2: Oil leakage

Reason: The sealing ring is aging or improperly installed.

Solution: Replace the high-temperature resistant sealing ring and apply lubricating grease during installation to ensure that the sealing surface fits snugly.

Problem 3: Decreased filtering effect

Reason: Damaged or improperly selected filter material.

Solution: Choose a filtration accuracy that matches the working conditions, regularly check the oil particle count, and replace the filter element in a timely manner.

Question 4: The service life is shorter than expected

Reason: Severe oil oxidation or high water content.

Solution: Strengthen oil monitoring, regularly replace lubricating oil, and install oil dehydration devices.
