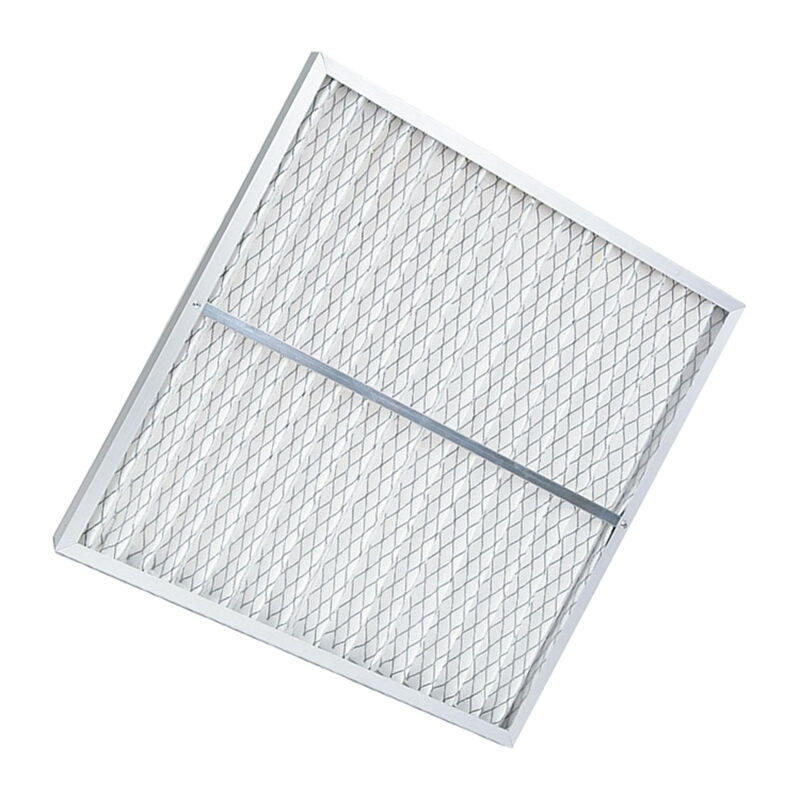

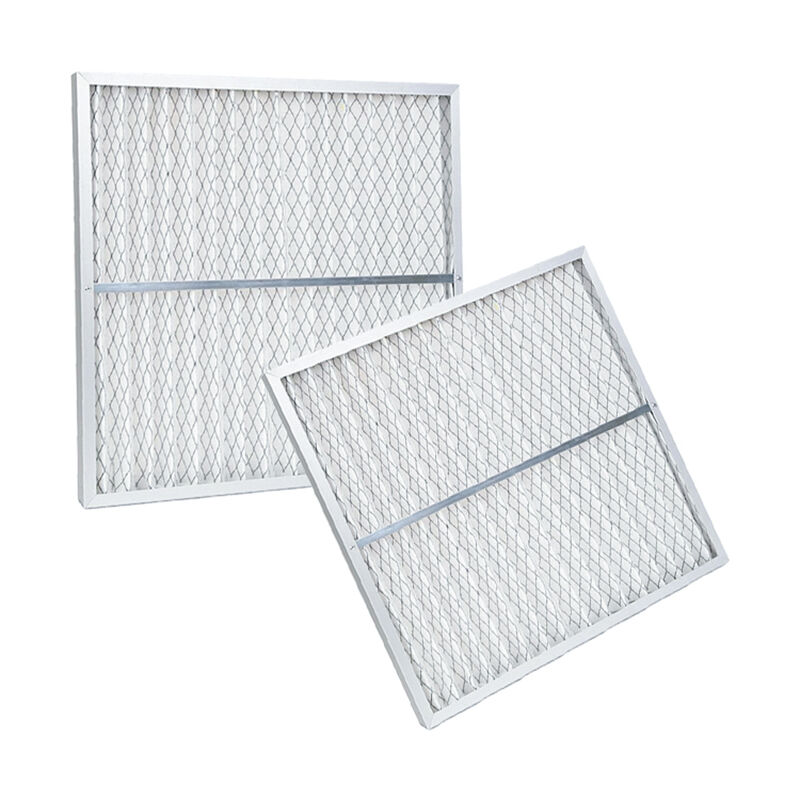

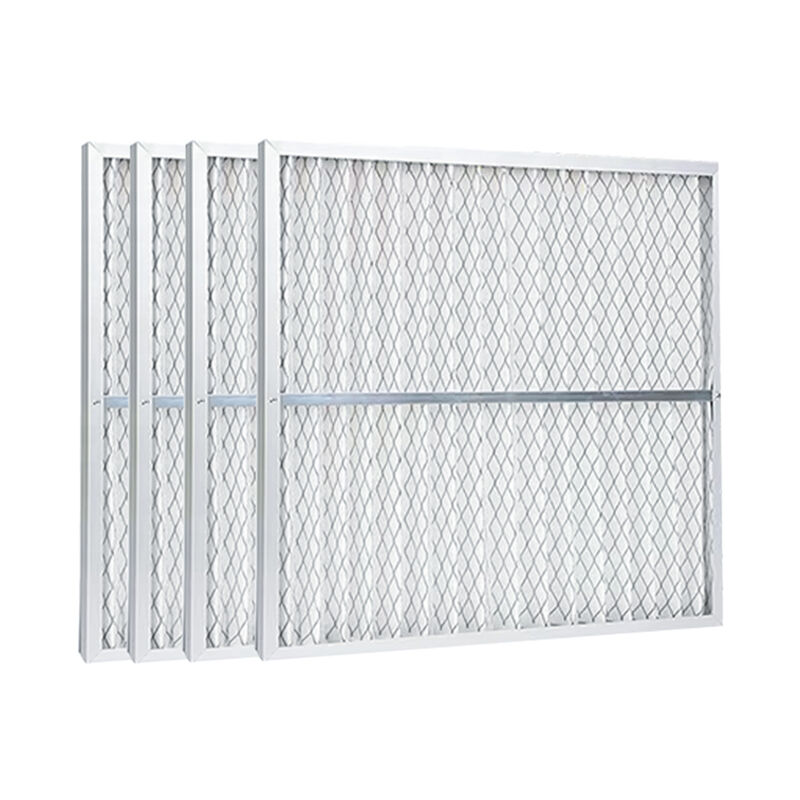

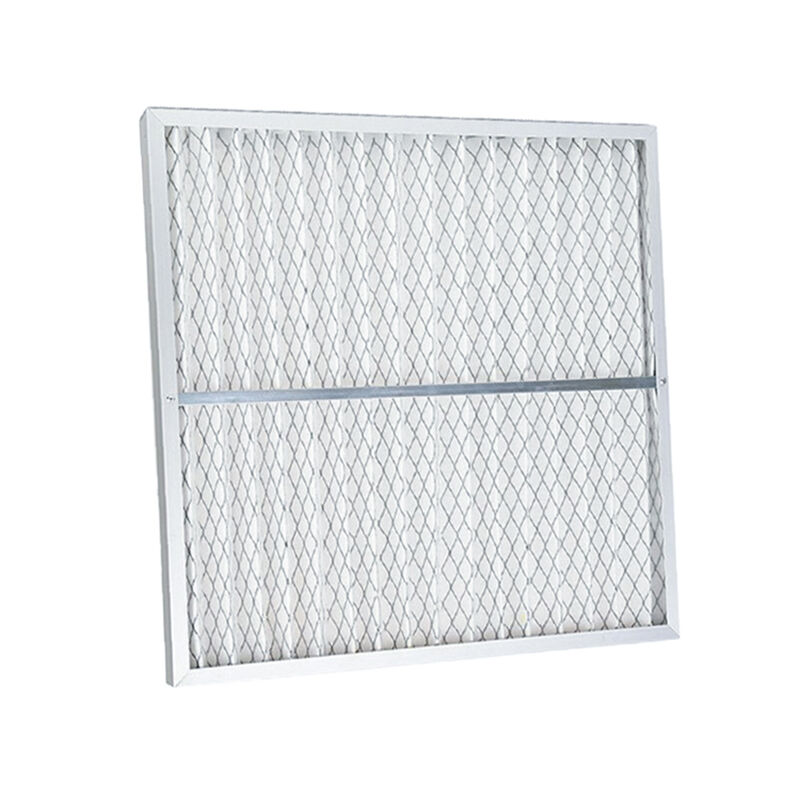

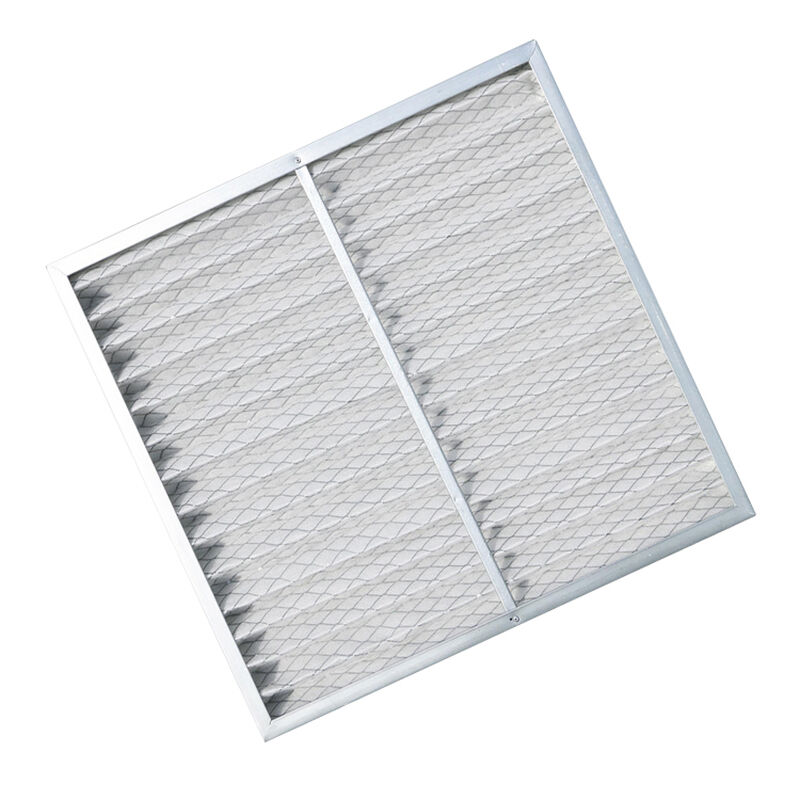

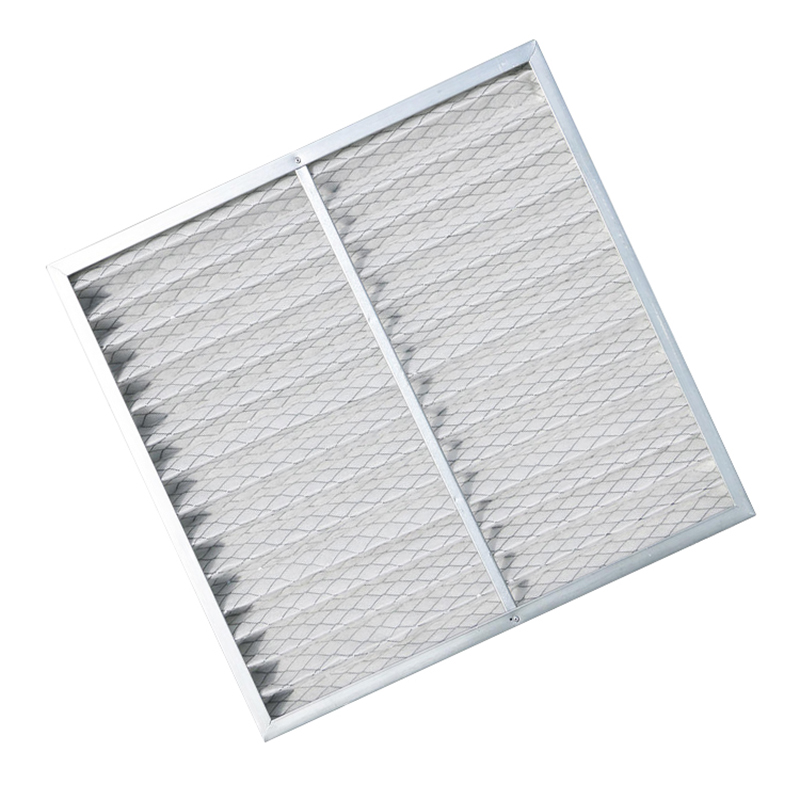

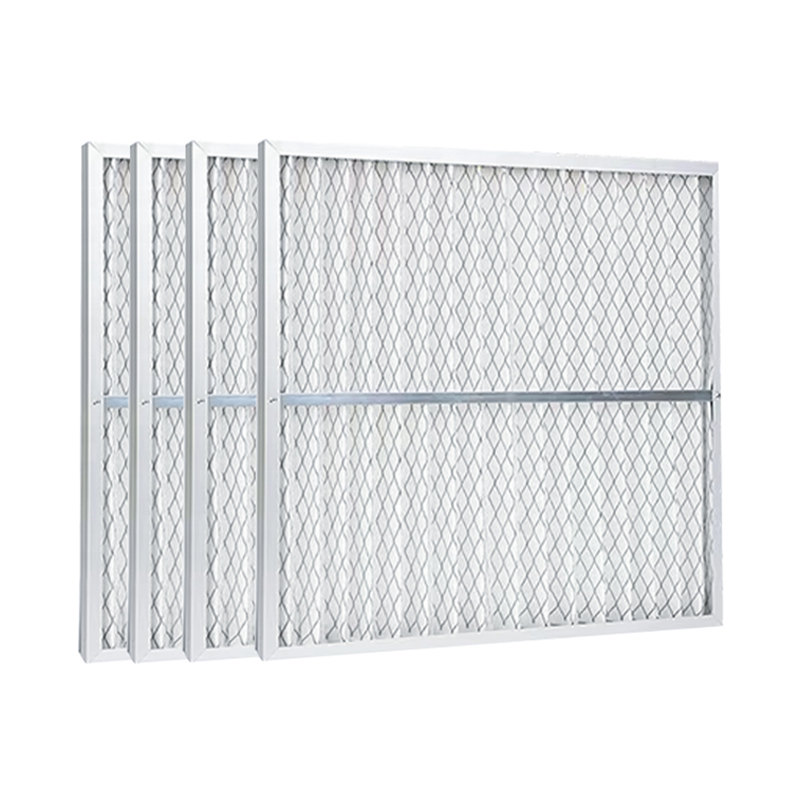

CXZL series primary folding filter element

The CXZL series primary folding filter element is a primary filtration core component designed specifically for air purification systems, focusing on intercepting large particulate pollutants in the air and providing reliable protection for subsequent medium and high-efficiency filtration processes. Its core function is to efficiently remove suspended particles ≥ 5 μ m, including dust, hair, fibers, dandruff, etc., effectively reducing the wear and tear of these impurities on ventilation equipment (such as fans, heat exchangers), while avoiding large particles from blocking subsequent filters, and extending the overall service life of the system. The CXZL series initial folding filter element is suitable for scenarios such as central air conditioning, industrial cleanrooms, and fresh air systems, and is the "first line of defense" to ensure air quality and stable operation of equipment.

The CXZL series initial effect folding filter element uses high-performance synthetic fibers (polyester fiber or glass fiber) as the filter material, and forms a three-dimensional gradually dense structure through precision folding technology, which increases the filtration area in a limited space by 3-5 times, significantly improving the dust holding capacity (≥ 400g/m ²) and filtration efficiency (G4 level, interception rate for 5 μ m particles ≥ 80%). The frame is made of galvanized steel plate or high-strength aluminum alloy material, reinforced with metal mesh to ensure that the filter element does not deform or break under high pressure difference (up to 32MPa wind pressure) or vibration environment. The sealing part adopts high elasticity chloroprene rubber strip, which is compatible with standard flange interface. After installation, it forms a leak free seal to prevent unfiltered air from bypassing the system.

In addition, the temperature resistance range of the filter element covers -10 ℃ to 80 ℃, which is compatible with different climate and working conditions. The initial pressure difference is as low as ≤ 30Pa, effectively reducing the energy consumption of the ventilation system. Its standardized design supports quick replacement and low maintenance costs, making it an ideal choice for primary filtration in commercial buildings, industrial production, public facilities, and other fields.

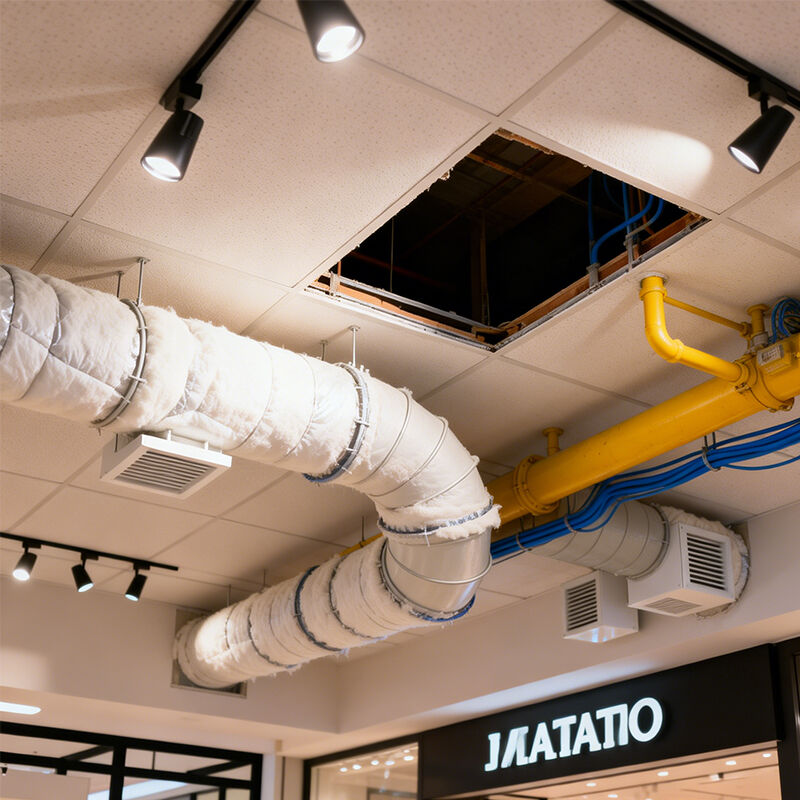

1. Commercial buildings

Pre filtration of central air conditioning systems and fresh air ventilators to ensure indoor air quality.

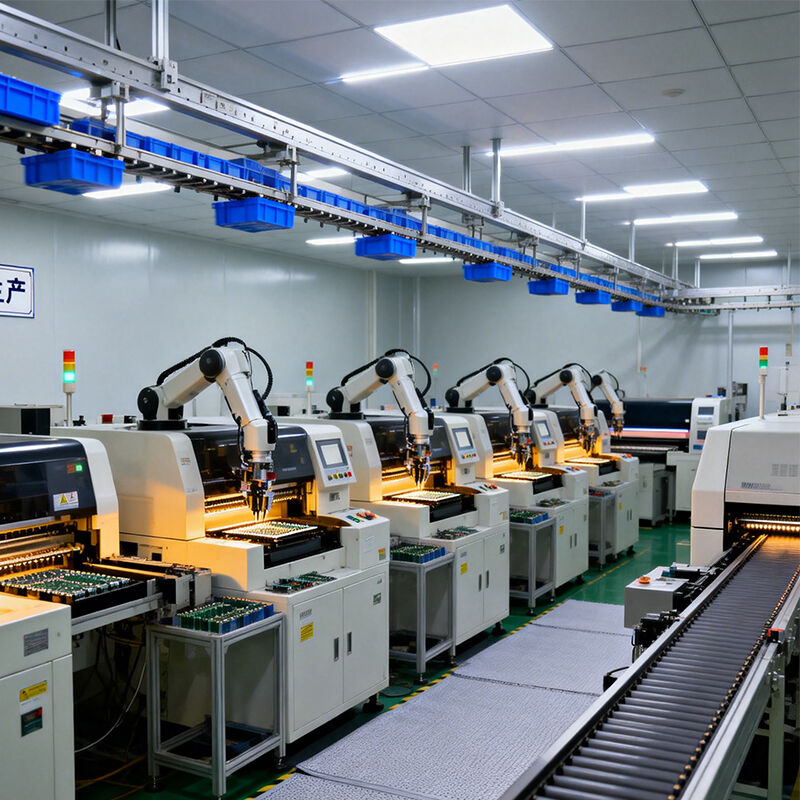

2. Industrial production

Clean room entrance filtration in industries such as electronics, pharmaceuticals, and food processing to prevent large particles from contaminating sensitive environments.

3. Public facilities

Ventilation systems for large venues such as airports, stations, and sports centers to reduce equipment maintenance costs.

4. Residential buildings

Primary filtration for household air conditioners and air purifiers, extending the filter replacement cycle.

1. Efficient filtration and low resistance balance

The folding design increases the unfolded area of the filter material by 3-5 times, increases the dust holding capacity by 40% under the same size, while maintaining a low initial pressure difference and reducing system energy consumption.

2. Stable and durable structure

The combination of metal frame and protective net has strong impact resistance and is suitable for high voltage difference or vibration environment.

3. Easy installation and maintenance

Standardized size design, can directly replace similar products; The sealing strip ensures no leakage and reduces the difficulty of later maintenance.

4. Outstanding cost-effectiveness

The cost of the filter material is moderate, coupled with a long-life design, and the total lifecycle cost is lower than that of traditional plate filters.

Problem 1: Decreased filtration efficiency

Reason: Filter material blockage or damage.

Solution: Regularly check the pressure difference and replace the filter element when the final resistance reaches twice the initial pressure difference; If damaged, it needs to be replaced immediately to prevent unfiltered air from entering the system.

Question 2: Air leakage

Reason: The sealing strip is aging or not installed properly.

Solution: Replace the sealing strip to ensure a tight fit between the filter element and the frame; Check if the flange interface is flat during installation.

Problem 3: Filter deformation

Reason: Long term high pressure differential operation or insufficient framework strength.

Solution: Choose metal frame filter cartridges and avoid using paper or plastic frame products; Regularly clean the system to prevent excessive clogging of the filter element.

Question 4: The service life is shorter than expected

Reason: High concentration of environmental dust or improper selection of filter materials.

Solution: Choose G3 (coarse efficiency) or G4 (medium efficiency) filter element according to the working conditions; Add pre filtration components (such as installing dust barriers) in areas with high dust concentration.
