The GLYJ manual oil filter is designed specifically for high viscosity lubricating and hydraulic oils, driven by a dedicated pump with strong self suction and smooth operation. Double stage filtration system, with a fine filtration accuracy of 3 μ m to 40 μ m optional, up to 1 micron. Equipped with overflow and overload protection, the quick start cover is easy to replace, and the bottom is equipped with brake wheels for flexible movement. It is suitable for oil filtration and purification in industries such as power, metallurgy, and petrochemicals.

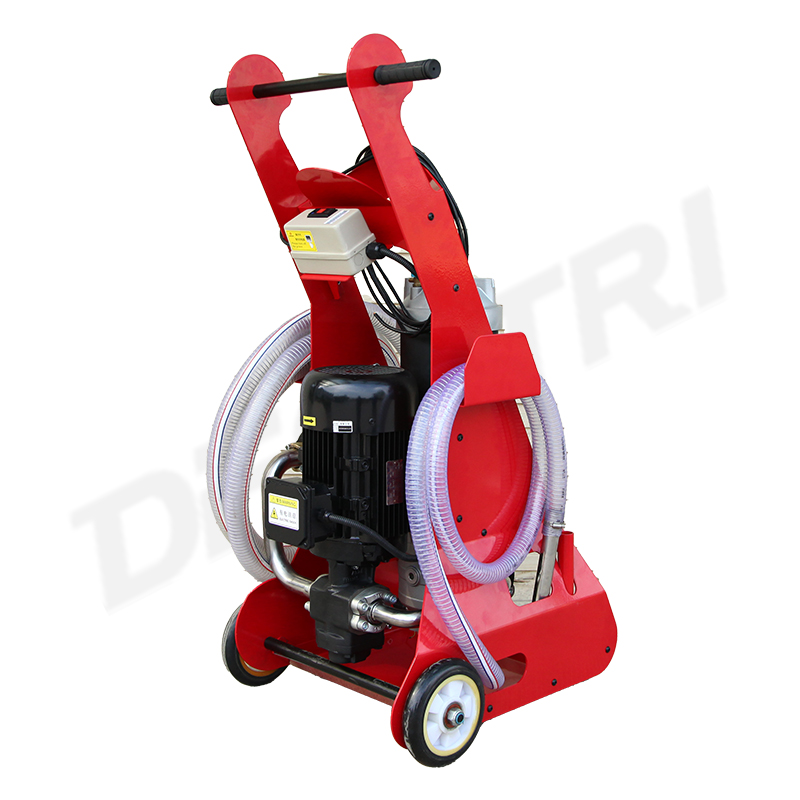

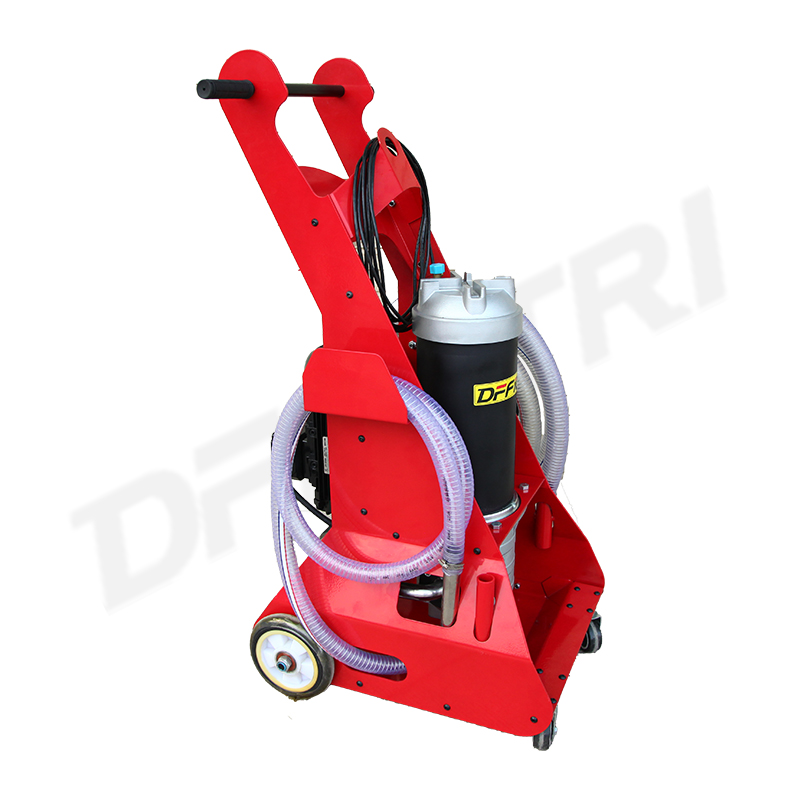

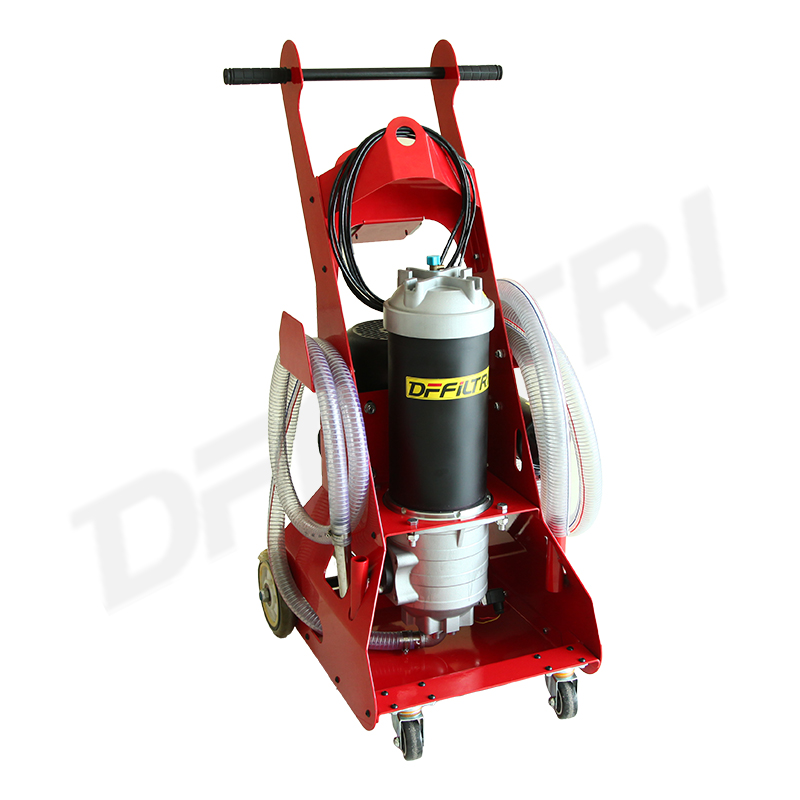

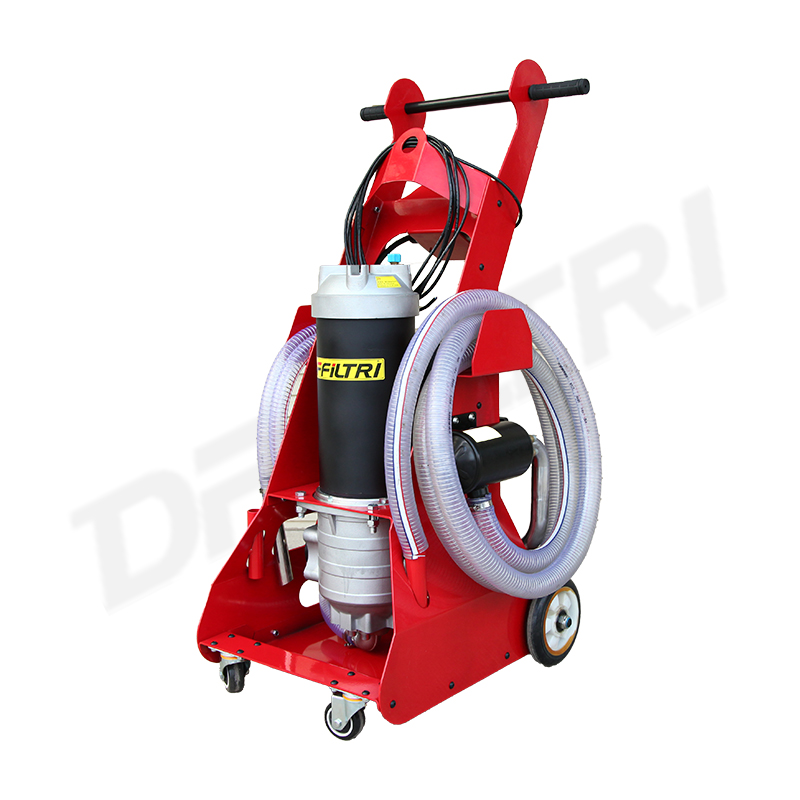

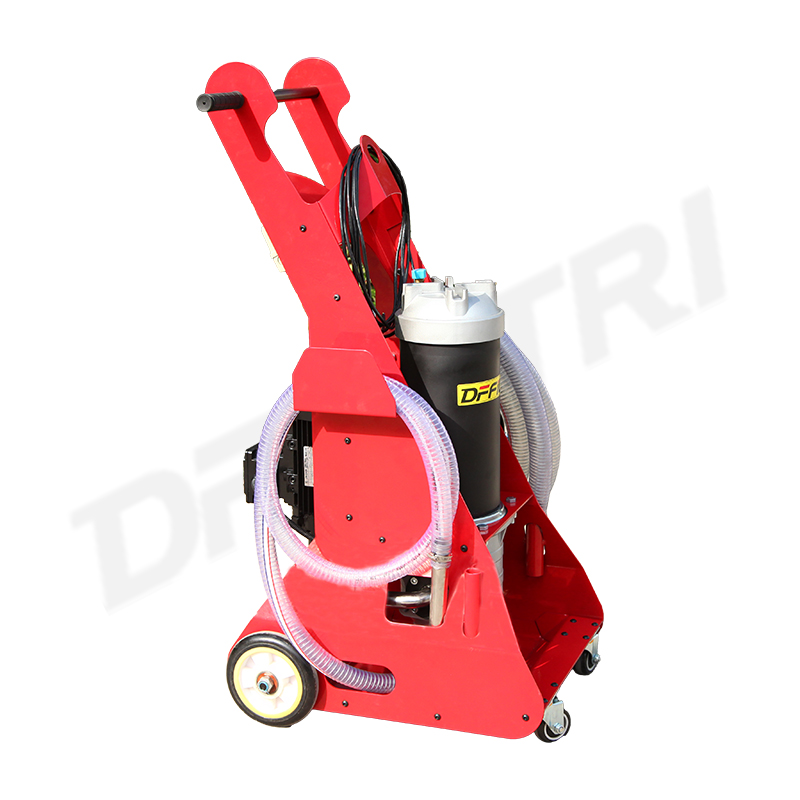

GLYJ manual oil filter is a mobile filtration and purification equipment specially designed for high viscosity lubricating oil and hydraulic oil. It integrates a high viscosity oil dedicated pump, multi-stage precision filtration, and intelligent protection, making it a powerful tool for industrial oil management. This model is driven by a high viscosity oil specific gear pump or screw pump, which delivers fluid smoothly without pulsation, with low noise and vibration. It has strong self-priming ability and can filter various corrosive media. The operating temperature can reach up to 200 ℃, making it particularly suitable for the filling and filtering of high viscosity oil products. The bottom is equipped with polyurethane universal wheels with brakes, which are flexible in movement and stable in positioning. Although the whole machine has weight, it is easy to operate and can be easily pushed by a single person.
| Brand Name | DFFILTRI |
| Model | GLYJ |
| Work pressure | 0.6Mpa |
| Flow rate | 50 (L/min) |
The GLYJ manual oil filter adopts a two-stage filtration system: the suction port is equipped with a coarse filter, which effectively intercepts large particle impurities and protects the main pump, extending the service life of core components; Fine filters can freely choose precision levels such as 3μm, 5μm, 10μm, 20μm, 30μm, and 40μm according to needs, with the highest precision reaching 1 micron and the highest cleanliness reaching NAS4 level. The pipeline is equipped with an overflow protection device to effectively safeguard the safety of the hydraulic system; Thermal relay protects the motor from overload damage; The end cap adopts a quick opening structure, making it convenient and efficient to replace the filter element; Optional heating module can be used to preheat the oil when the oil temperature is too low or the viscosity is too high, ensuring smooth filtration. Hydraulic pipe joint connection, reliable sealing, working pressure ≤ 0.6MPa, rated flow rate up to 100L/min, applicable medium viscosity ≤ 200cSt.
The GLYJ manual oil filter is widely used in industries such as power, metallurgy, coal mining, petrochemicals, engineering machinery, and railways. It specifically covers the filtration and filling of high viscosity lubricating oil, bypass circulation filtration during hydraulic lubrication system operation, circulation purification before system operation, and mobile oil pumping and refueling in field operations.
Compared to conventional oil filters, the GLYJ manual oil filter has three particularly prominent advantages: firstly, a dedicated high viscosity pump that solves the pain point of ordinary pumps being unable to suction and discharge in high viscosity oil products; Secondly, multi-level filtration accuracy can be freely selected, from coarse filtration to fine filtration in one machine, without the need for filter paper and without polluting the site; The third is multiple safety protections - the overflow valve, thermal relay, and coarse filter protection all work together to ensure worry free operation of the equipment.
If the power indicator light of the GLYJ manual oil filter does not light up during use, it is usually due to the power not being connected or the indicator light itself being damaged. Please check the power cord and connect the power, and replace the indicator light if necessary. After pressing the start button, the device does not work, which is often caused by incorrect power phase sequence or motor overload. It is necessary to adjust the three-phase phase sequence or press the reset button on the thermal relay to restore it. When the filter alarm light is on, it is usually due to low oil temperature causing excessive viscosity or clogged filter element.
It is recommended to turn on the heating function to naturally recover after heating up. If it still does not turn off, the filter element needs to be replaced. When the differential pressure transmitter pops up, it indicates that the fine filter element is severely clogged and should be replaced with a new filter element in a timely manner when the differential pressure reaches 0.35MPa.
If there is abnormal noise or vibration during operation, the common reasons are that the ball valve is not open, the pipeline is blocked, or there is air in the system. Simply open the ball valve, clean the pipeline, and perform exhaust operation to eliminate it.
