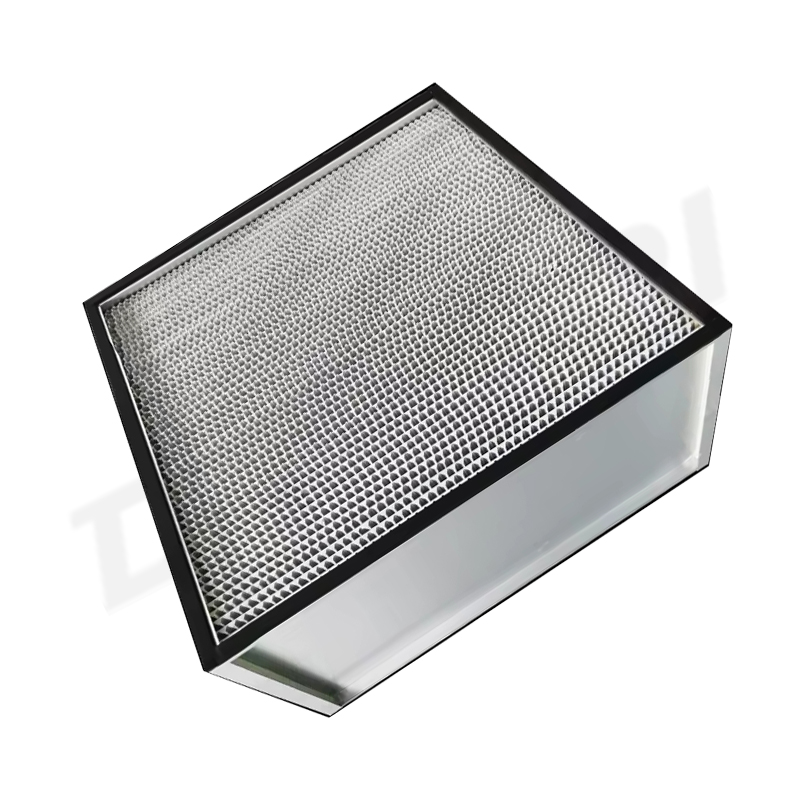

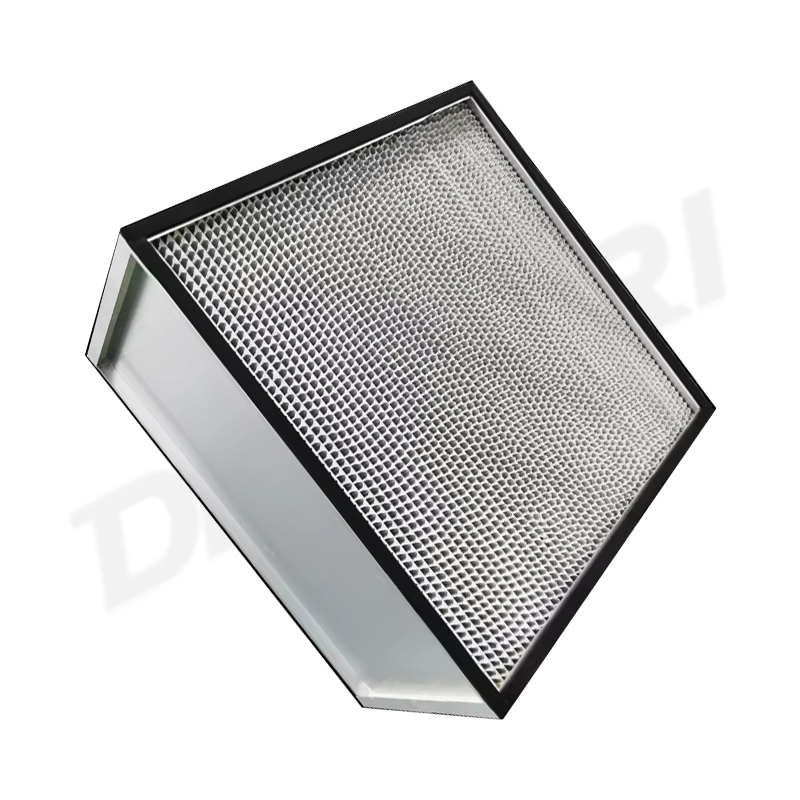

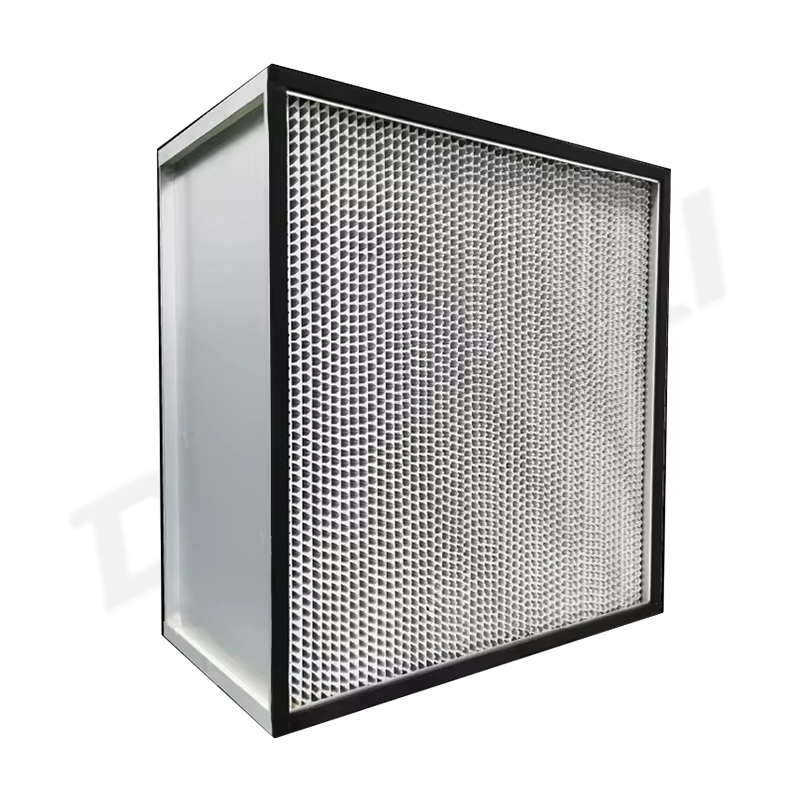

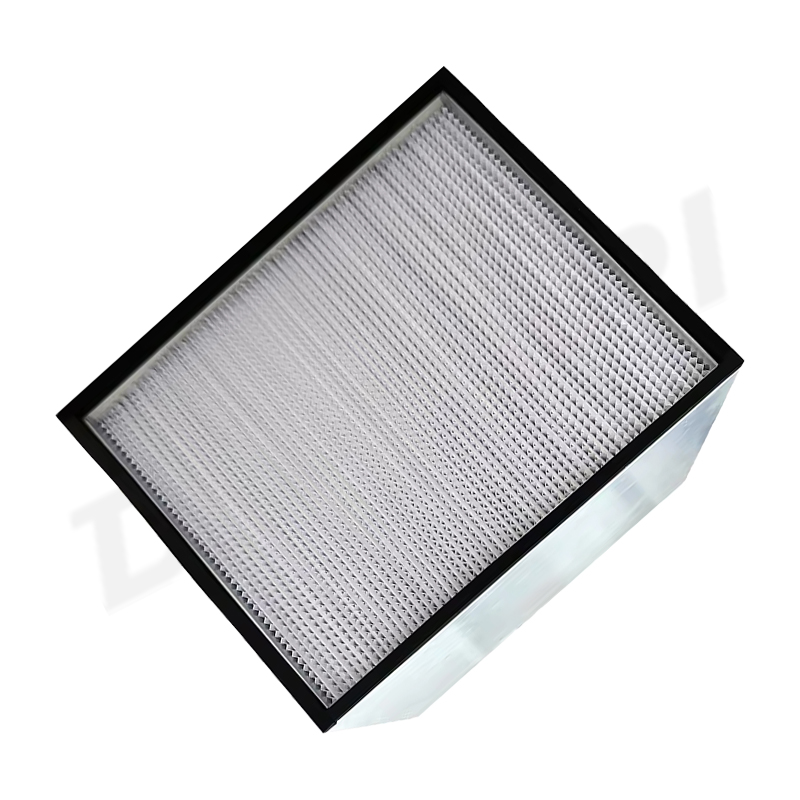

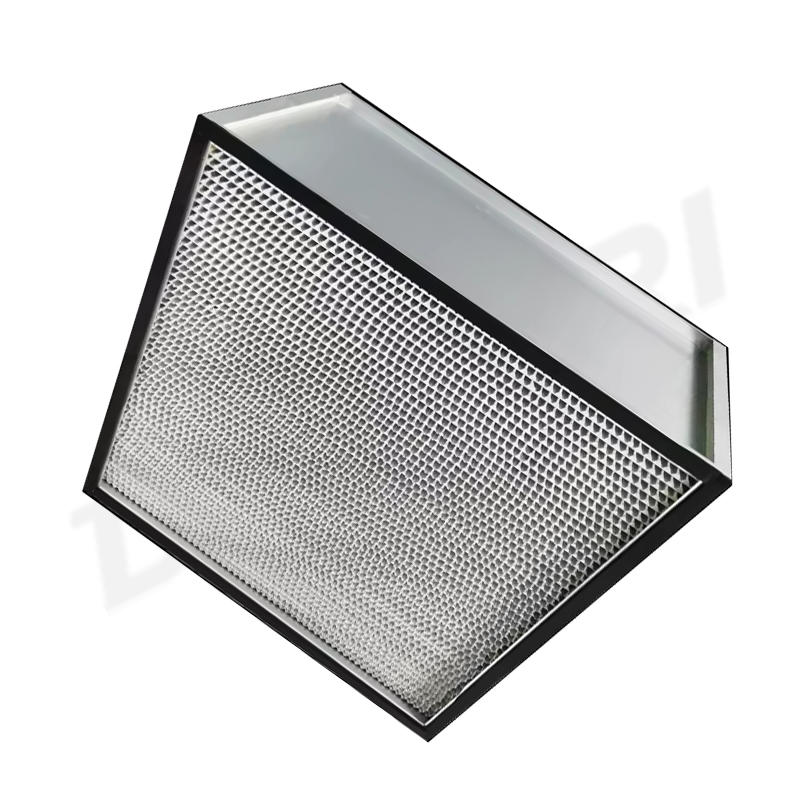

GXGL series high-efficiency partition air filter cartridge

The GXGL series high-efficiency partitioned air filter cartridge uses ultra-fine glass fiber filter paper as the core filter material, high-quality adhesive paper or aluminum foil as the partition plate, and is precisely glued with an aluminum alloy frame. It is an indispensable end filtration equipment in purification air conditioning systems. This series of products is strictly manufactured in accordance with national standards GB/T 13554-2020 and GB/T 6165-2021. Each filter element undergoes laser scanning leak detection testing one by one, with a filtration efficiency of up to 99.99% @ 0.3 μ m (H14 level), which can effectively capture air suspended particles above 0.1 μ m and provide reliable air purification guarantee for clean spaces.

The GXGL series high-efficiency partitioned air filter cartridge adopts a folding partition structure design. The height of the partition and the tightness of the filter paper assembly are precisely calculated to ensure uniform airflow and minimal resistance. The outer frame is made of anodized aluminum alloy profiles, with a width of 15mm~20mm, sturdy and corrosion-resistant; The sealing adopts a new type of polyurethane sealant with excellent anti rupture strength, combined with EVA or EPDM sealing strips to eliminate leakage hazards. The filter element has a working temperature range of -10 ℃ to 80 ℃, a humidity resistance of up to 100% RH, a filtration accuracy of 0.3 microns, low initial resistance, large dust holding capacity, and long service life. It is an ideal choice for clean room end filtration.

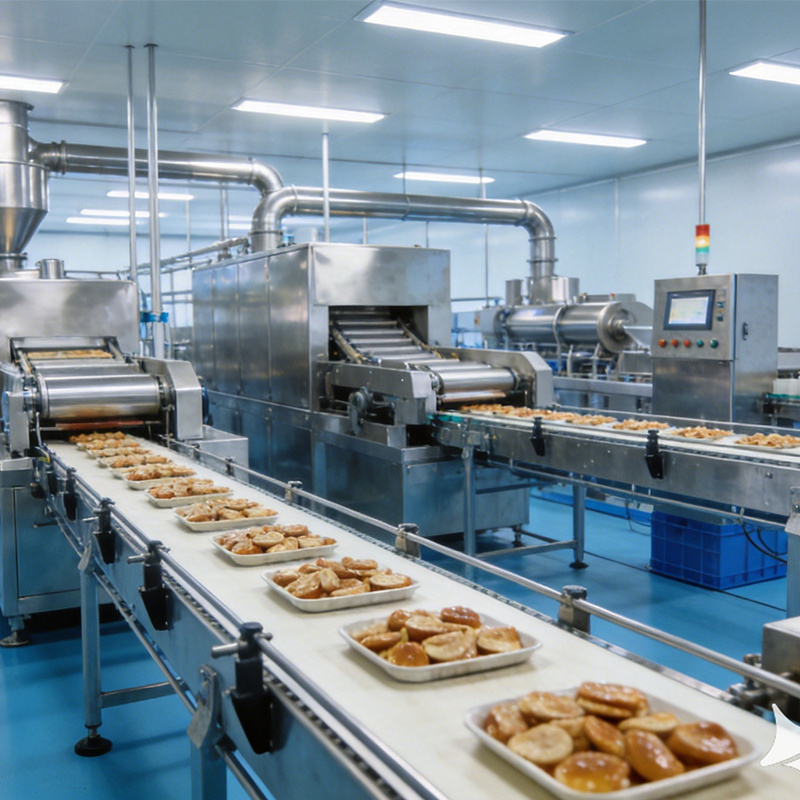

The GXGL series high-efficiency partitioned air filter cartridge is widely used in electronic semiconductor cleanrooms, biopharmaceutical GMP workshops, hospital operating rooms and ICUs, food QS certified purification workshops, LCD liquid crystal manufacturing, PCB printing, precision instrument laboratories, optical and electronic clean rooms and other places that require extremely high air cleanliness. It is also suitable for industrial and civilian purification fields such as automotive painting workshops, commercial fresh air systems, and ultra clean laboratories.

Compared to the non partition structure, the GXGL series high-efficiency partition air filter cartridge has a partition design with a larger filtration area and higher air volume, excellent structural strength, and outstanding performance especially in high air volume demand scenarios. The aluminum partition version can withstand high temperature and high humidity environments, and has a wider range of applications. The product has passed ISO9001 quality system certification, supporting H10-H14 efficiency customization and various flange edge structure adaptation. Each laser scan ensures zero leakage, and the cost-effectiveness far exceeds similar imported products.

Problem 1: The resistance of the filter element rises too quickly. The reasons are often due to missing pre filters or failure to replace pre filters in a timely manner. Solution: Install a G4 level primary filter as a pre protection and set the final resistance at twice the initial resistance. Regularly replace the pre filter to extend the lifespan of the end filter element to more than 5 years.

Problem 2: Leakage at the sealing point. Due to insufficient parallelism of the sealing surface or aging of the sealing gasket. Solution: Use polyurethane rubber gaskets instead of ordinary gaskets to enhance the compensatory sealing performance; Ensure that the sealing surface is flat and the flange is tightly connected during installation.

Problem 3: The cleanliness test is not qualified. Commonly seen when the temperature and humidity change, the partition paper emits particles. Solution: For high cleanliness areas, it is recommended to use the aluminum partition version to avoid the release of particles from paper partitions during environmental changes and eliminate potential hazards from the root.
