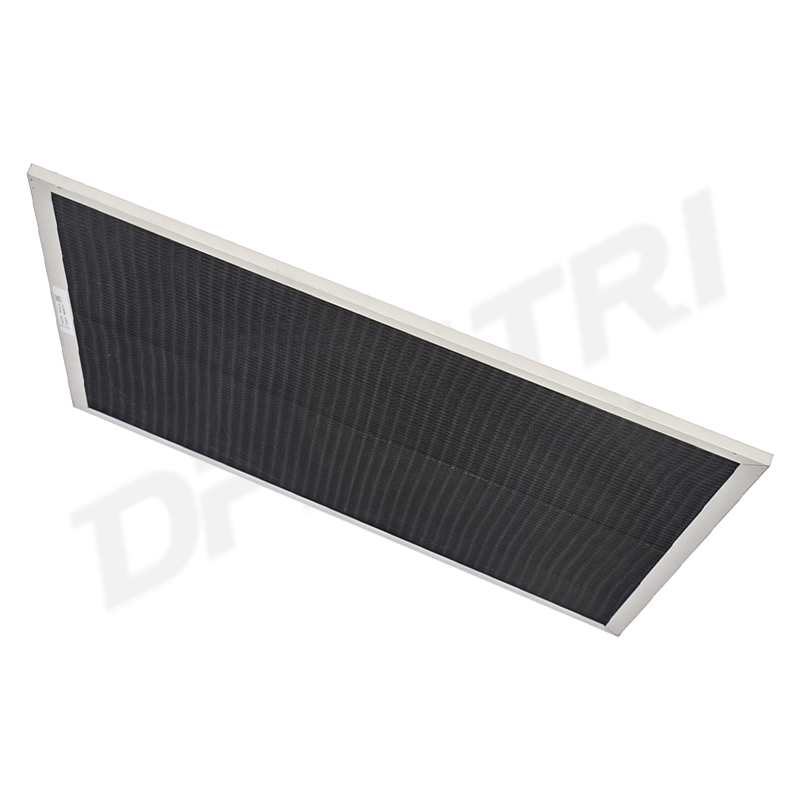

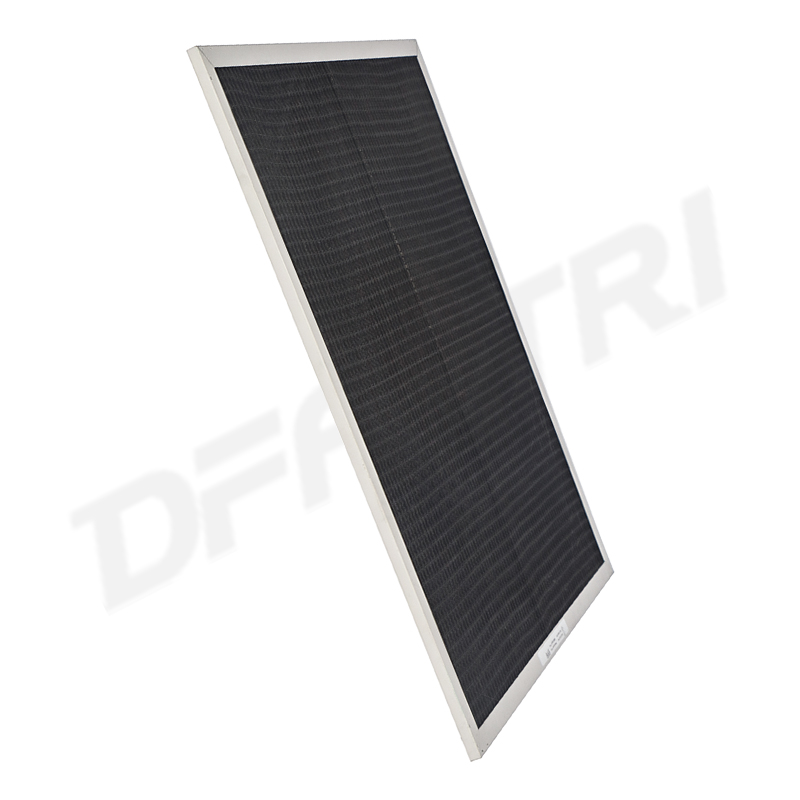

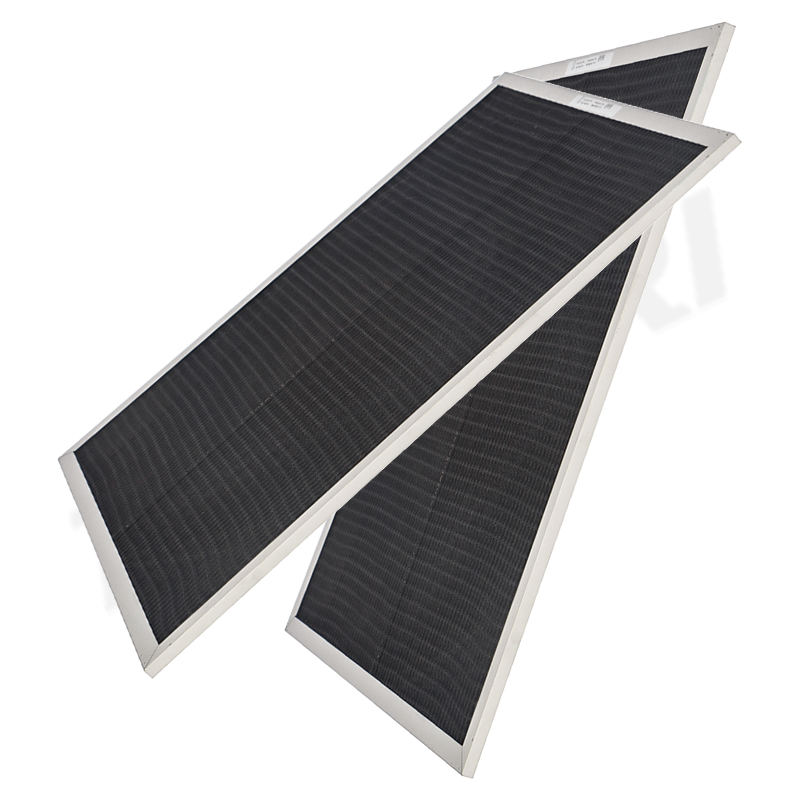

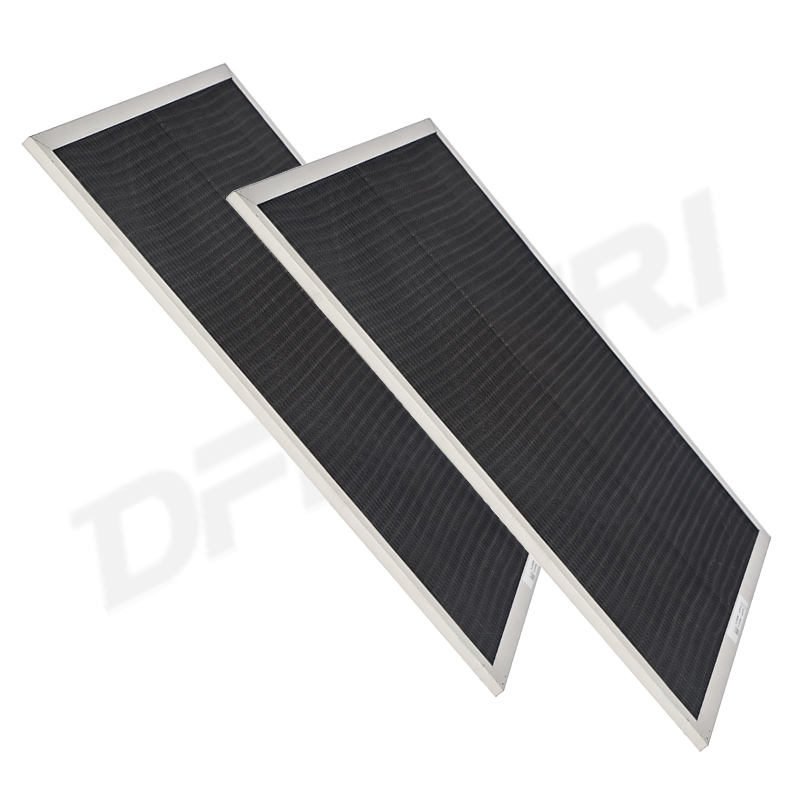

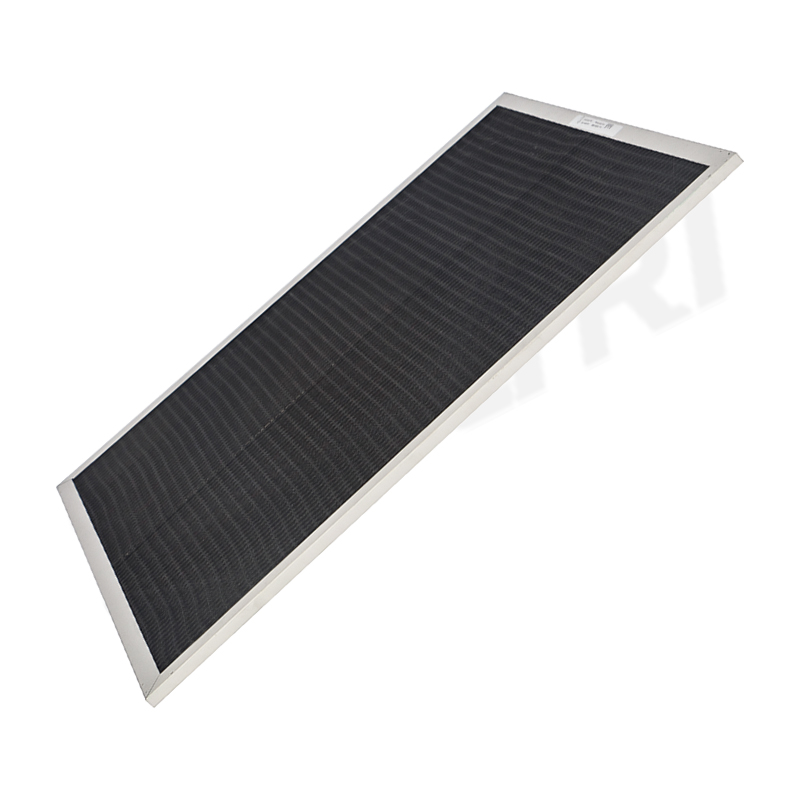

NLWL series nylon mesh filter element

The NLWL series nylon mesh filter element is a cost-effective air filtration product designed specifically for primary filtration in ventilation and air conditioning systems. It is made of integrated nylon mesh filter material made of single filament fibers such as PP, PA, and PE through precision weaving technology. It belongs to the G series GN category of primary filters and can effectively capture particles, dust, and various suspended solids of ≥ 5 μ m. The weight based filtration efficiency covers 35% to 95% @ 5 μ m. The filter element is supported by aluminum alloy, galvanized steel plate or stainless steel frame, with a lightweight and compact plate structure. The initial resistance is as low as less than 20Pa, and the dust holding capacity is high. It has core advantages such as high air volume, low energy consumption, and repeatable cleaning. Some models have a temperature resistance of over 80 ℃, are resistant to acid and alkali, moisture, and corrosion, making them an economical choice for pre filtration in central air conditioning and industrial ventilation systems.

The NLWL series nylon mesh filter element adopts a lightweight plate structure, which is divided into two forms: framed and rolled. The framed product frame can be made with handles to interconnect into a group, making it easy to install and maintain in bulk. The filter material is woven and formed from PP or PA monofilament fibers, with an iron wire support structure inside. The double-layer or multi-layer filter unit is formed by tightening the nylon mesh through the lining frame, effectively increasing the filtration area and optimizing the airflow distribution. The outer frame material can be selected from aluminum alloy, stainless steel, galvanized sheet or nylon edging, and supports customized size design. The filter material has excellent acid and alkali resistance and corrosion resistance, and can be repeatedly washed and cleaned. After cleaning, the filtration efficiency is not affected, and the service life far exceeds that of disposable filter materials. The overall structure is simple and reasonable, and can be quickly disassembled and replaced by a single person. Daily maintenance is convenient and efficient.

The NLWL series nylon mesh filter element is widely used in primary filtration of central air conditioning and centralized ventilation systems, pre filtration of fresh air units and indoor air handling units, pre protection of clean room return air systems, coarse dust filtration of large civil buildings (office buildings, shopping malls, sports halls, airports, etc.) ventilation systems, factory centralized air conditioning systems, air purifiers, vacuum cleaners and other air handling equipment. It can also be used in refrigeration air conditioning equipment, warm air fans, range hoods and other occasions that require high air volume primary filtration.

Compared to traditional non-woven primary filter element, the NLWL series nylon mesh filter cartridges are made of nylon mesh material that can be repeatedly cleaned, reducing overall usage costs by over 60%; The initial resistance is only about 20Pa, which is 15% lower than the industry average, and the energy consumption of the fan is significantly reduced; The weighing efficiency can reach up to 95% @5μm, with a large dust holding capacity and lower replacement frequency; Aluminum alloy and stainless steel frames are optional, balancing lightweight and corrosion resistance; G1 to G4 full level coverage, supporting standard and non-standard customization, with strong adaptability.

① Decreased filtration effect: Resistance increases due to dust accumulation. When the pressure difference between the inlet and outlet reaches 120Pa, it should be cleaned or replaced in a timely manner to avoid operation under excessive pressure difference.

② Damage and deformation of filter screen: usually caused by improper installation or operation under excessive pressure difference. When replacing, ensure that the filter screen is tightly attached to the supporting structure and the bolts are evenly tightened.

③ Efficiency decreases after cleaning: The cleaning water temperature should not exceed 50 ℃, only rinse with tap water, avoid using chemical cleaning agents, dry in a cool place, and do not expose to direct sunlight or open flames.

④ Blockage too quickly: It is recommended to install a pre filtration device at the front end to intercept large particles of impurities, and select the appropriate filtration level based on the dust concentration.
