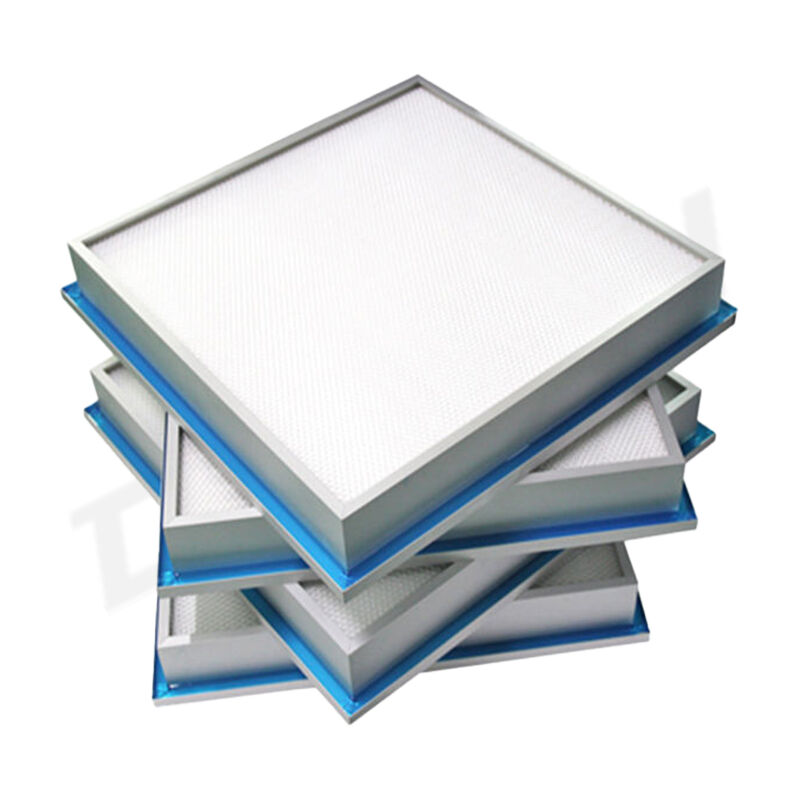

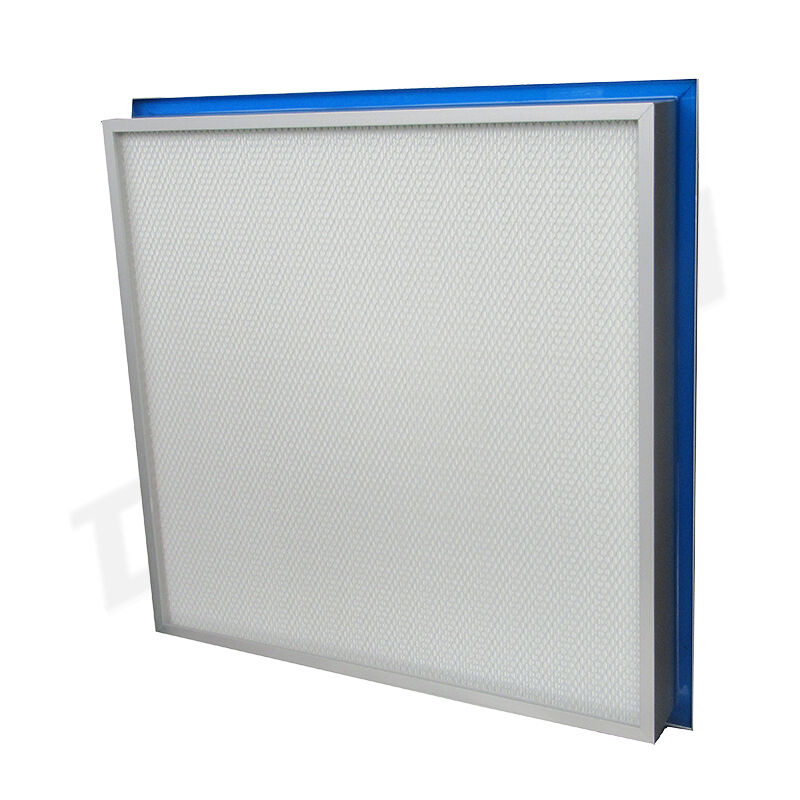

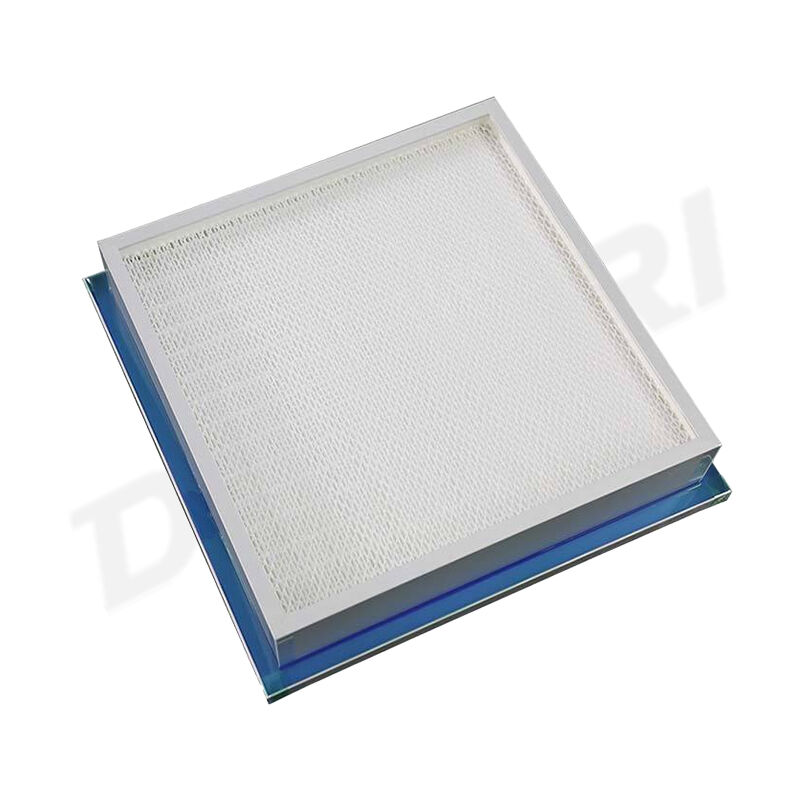

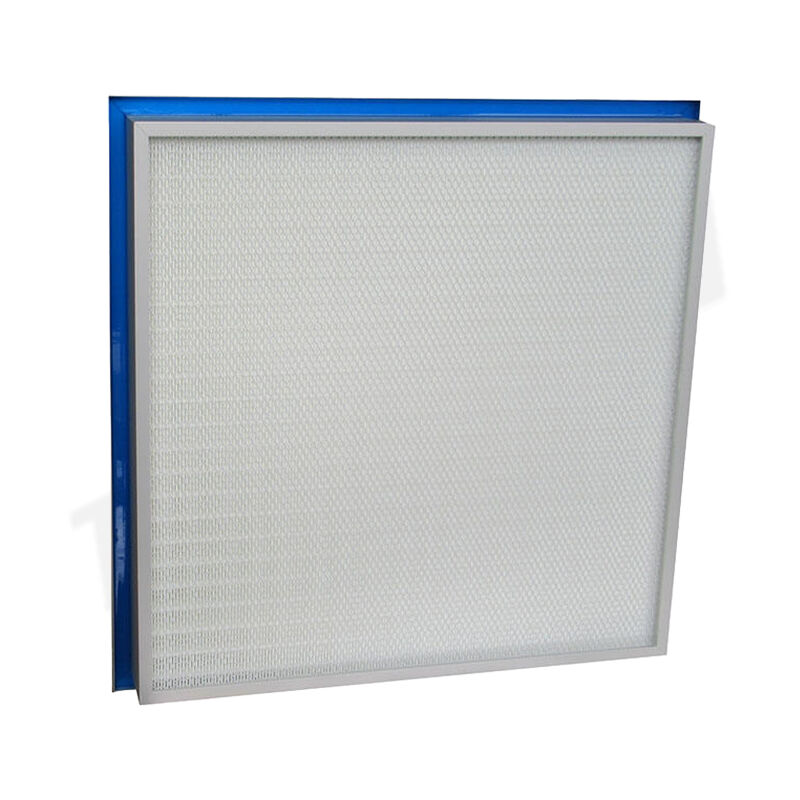

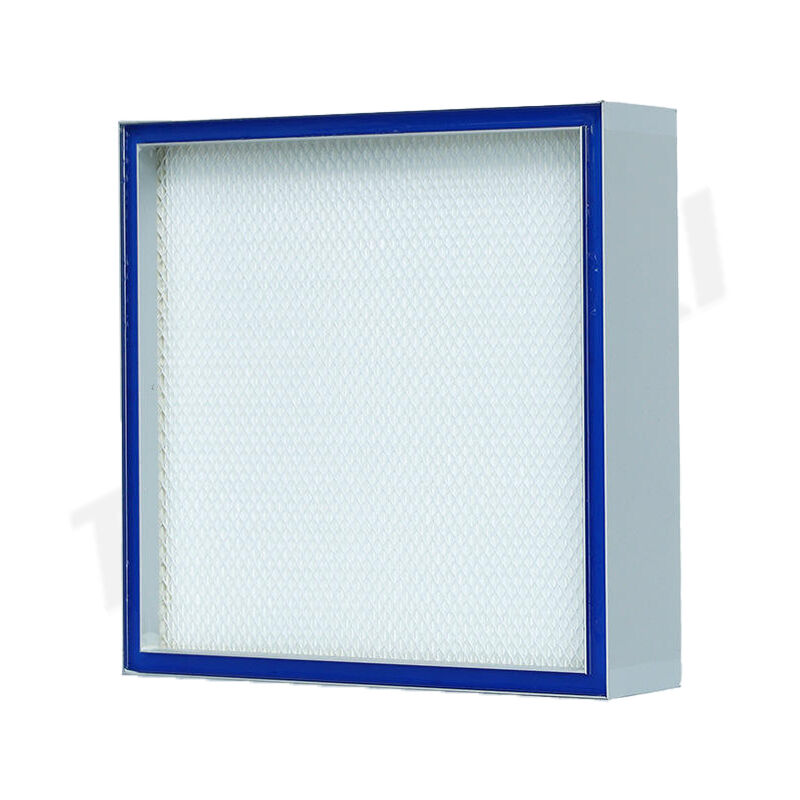

CHYGL series side liquid tank high-efficiency filter cartridge

The CHYGL series side liquid tank high-efficiency filter cartridge is a partition free high-efficiency air filtration product specially designed for high cleanliness terminal filtration scenarios. It uses ultra-fine glass fiber filter paper as the filtering medium, imported hot melt adhesive as the dividing line, and the surrounding frame is bent upward to form a U-shaped cross-section liquid tank. It is combined with polyurethane blue jelly glue to achieve all-round liquid sealing. The product's filtration efficiency covers H13 to U15 levels, with a filtration efficiency of over 99.995% for particles with a diameter of 0.3 μ m. It is widely used in industrial and biological purification fields that require extremely strict sealing and cleanliness requirements.

The outer frame of the CHYGL series side liquid tank high-efficiency filter cartridge is made of aluminum alloy material that has been anodized on the surface, and double-sided diamond shaped spray coated steel plate mesh is attached to effectively protect the filter paper from damage; The sealing of the liquid tank adopts blue jelly glue with a temperature resistance of ≤ 80 ℃, which forms an elastic colloid after curing. The sealing liquid level is controlled at 2/3 or more of the tank depth to ensure airtightness. The ripple height is adjustable from 22-96mm, the folding process is compact, the volume is small, the weight is light, the thickness is thin, and the installation is convenient. All products undergo scanning and leak testing one by one before leaving the factory, with a 100% pass rate and support for non-standard size customization.

The CHYGL series side liquid tank high-efficiency filter cartridge is mainly used in GMP clean room end high-efficiency air supply ports in pharmaceutical factories, hospital operating rooms and sterile wards, biosafety laboratories, semiconductor wafer workshops, food aseptic filling lines, electronic precision assembly clean rooms, disease control centers, and animal laboratories, which require extremely high air cleanliness and sealing. It is an ideal choice for end filtration of clean air conditioning systems.

The CHYGL series side liquid tank high-efficiency filter cartridge has excellent sealing performance: the liquid tank sealing method is superior to traditional mechanical compression sealing, which fundamentally eliminates unfiltered air bypass leakage and can pass the DOP dust integrity test in one go. Top filtration efficiency: H14 level has a filtration efficiency of ≥ 99.995% for 0.3 μ m particles, high dust holding capacity, low initial resistance, and economical operating cost. Easy installation and maintenance: adopting a rotating pressure block design, supporting safe and fast replacement, no dust during disassembly, and zero leakage during the replacement process. Strong weather resistance: It has excellent chemical corrosion resistance, is not easy for microorganisms to grow, can operate at temperatures up to 80 ℃, and has a wide range of humidity adaptability.

In practical use, if there is an alarm when scanning for leakage detection, it is usually caused by insufficient filling of the gel or the presence of bubbles inside. The temperature resistant 80 ℃ blue jelly gel needs to be replaced, and the filling height must exceed 70% of the groove depth. If there is leakage around but normal in the middle, it is often due to uneven screw fixation or aging of the sealing ring.

The installation torque should be re leveled to control the deviation of the four corners within 0.5N · m, and the sealing ring should be replaced simultaneously. When the initial resistance exceeds 250Pa or the growth rate is too fast, it is often caused by the failure to replace the front-end intermediate efficiency filter in a timely manner. It is recommended to monitor the pressure difference every month and force the replacement of the filter element when the final resistance reaches twice the initial resistance. If the filter material is damaged and leaks, it is usually caused by transportation collision or missing partition. The integrity of the filter paper can be checked with strong light. If the single point damage does not exceed 3mm, special adhesive can be used for repair. If dust pollution occurs during disassembly, it is caused by direct handling without bagging. The standard process of sealing and packing the old filter after shutdown, cleaning the installation position, reinstalling the new filter, and self-cleaning for 24 hours must be strictly followed.
