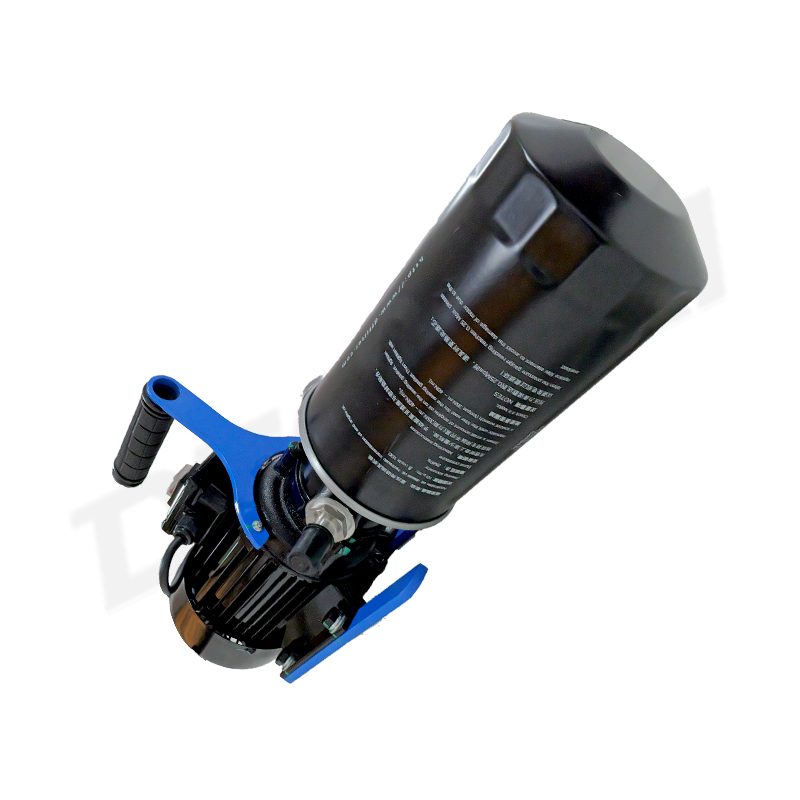

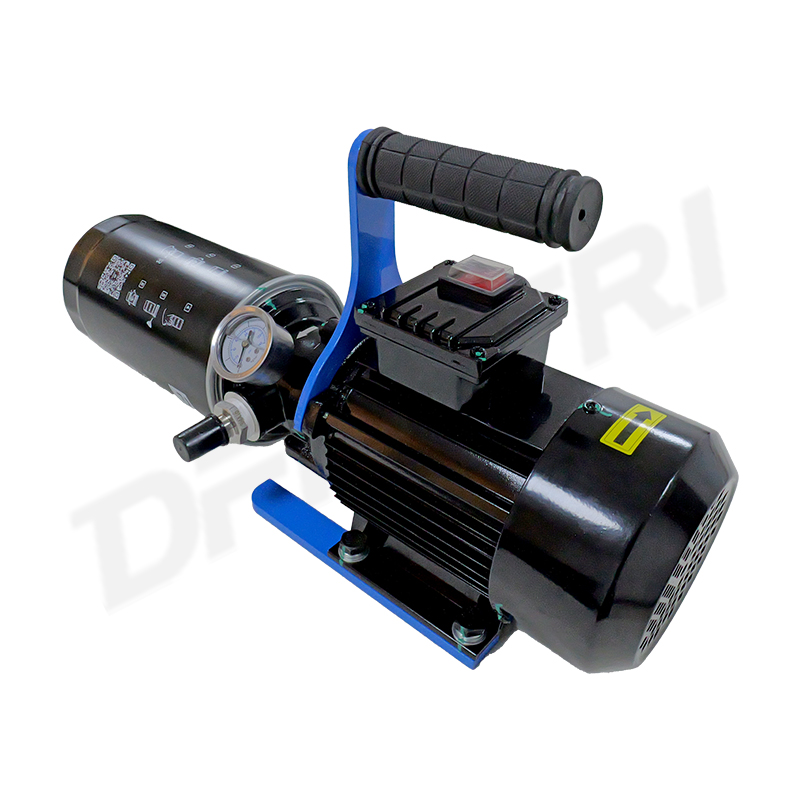

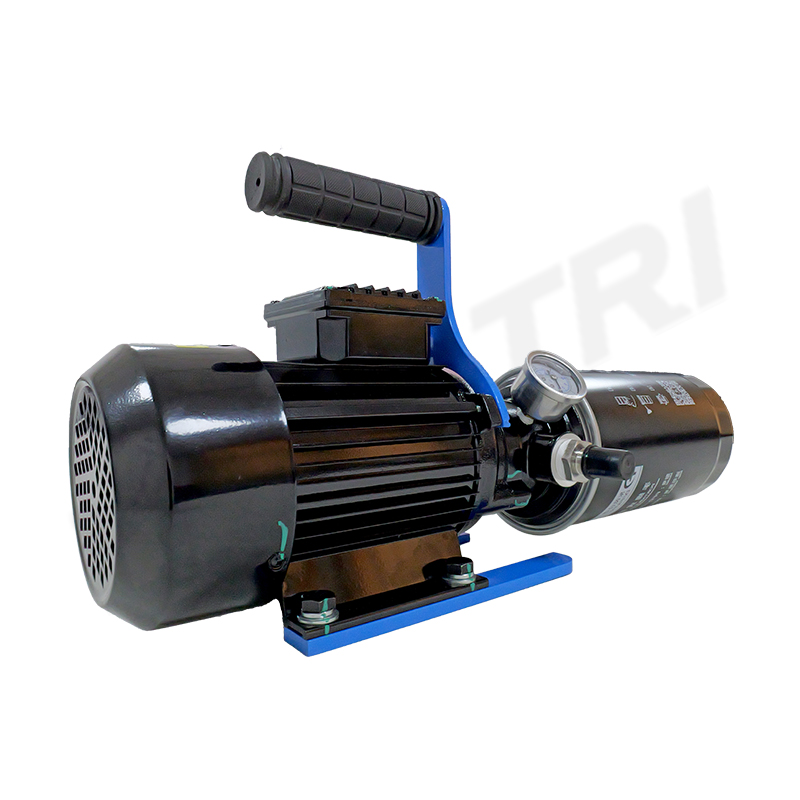

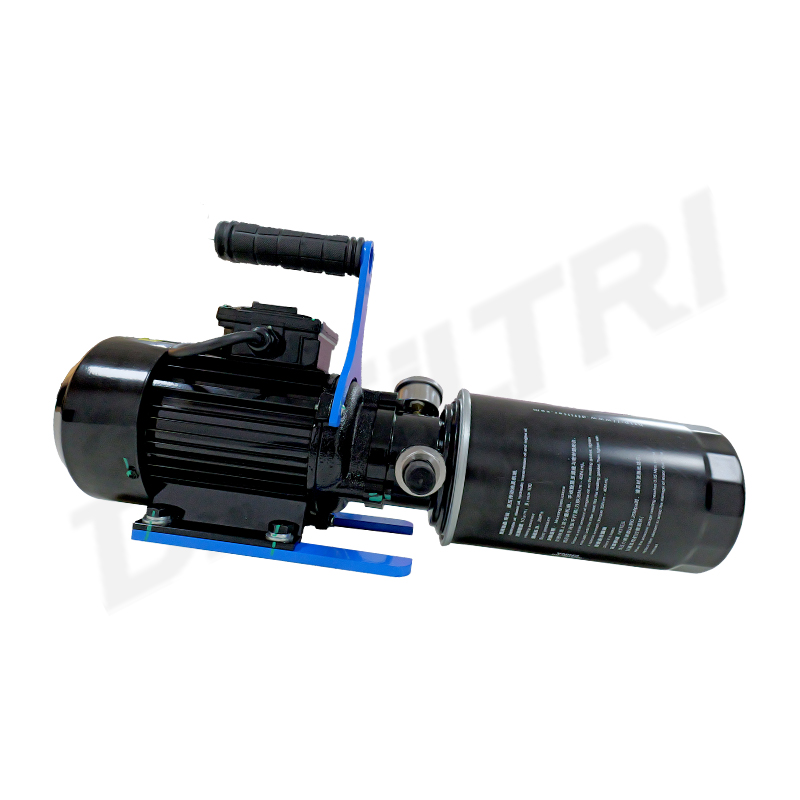

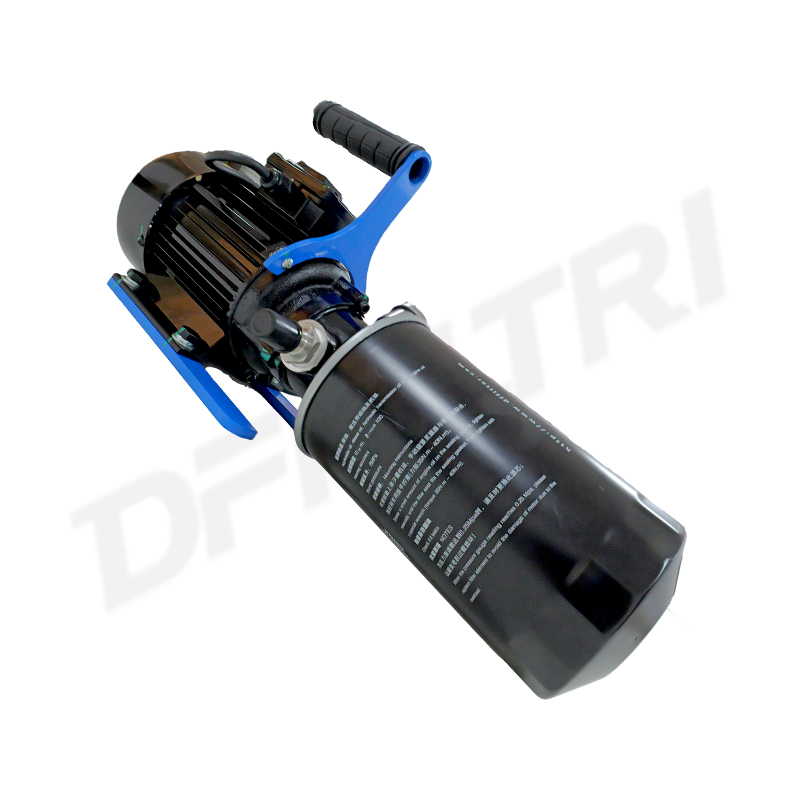

PFD portable oil filter machine

PFD portable oil filter machine is a lightweight and portable filtration equipment designed specifically for mobile oil purification and transportation scenarios. It is a universal basic purification device in the field of industrial oil operation and maintenance. It can complete oil treatment operations in various small and scattered work sites without fixed installation, providing convenient impurity filtration and transportation support for various industrial oils. It is one of the core supporting equipment for daily maintenance of oil products on site.

The PFD portable oil filter machine adopts a compact integrated structure design, with the weight controlled within a range that can be easily carried by a single person. It is equipped with an ergonomic anti slip handle and a multi-stage progressive mechanical filtration system. The filtration accuracy covers the range of 1 μ m to 10 μ m, and different precision filter elements can be freely selected according to actual needs. The built-in gear pump forms a stable negative pressure to complete oil suction and transportation, and the working pressure is stably controlled within 0.5MPa. The motor power of conventional models does not exceed 1.5kW, and it can be directly adapted to the conventional 220V industrial site according to actual needs Commercial power, no need for additional modification of power supply lines, equipment with integrated pressure gauges for real-time monitoring of operating status, built-in anti pipeline blockage protection mechanism, parts in contact with oil can be selected with anti-corrosion materials according to needs, and the temperature resistance range of the whole machine covers -10 ℃ to 80 ℃, which can meet the processing needs of most conventional industrial oil products.

This PFD portable oil filter machine can cover multiple types of dispersed oil maintenance scenarios, suitable for refueling filtration and bypass online purification of various hydraulic lubrication systems. It can also complete the circulation filtration of system oil before the equipment is put into operation, and can independently export and transport oil without going through the equipment's own pump body. At the same time, it is suitable for on-site oil pre-treatment of field operation equipment, small power units, pitch gearboxes, small transformers and other equipment. It can also be used for temporary filtration operations of single small hydraulic stations in the workshop, meeting the oil purification needs of various dispersed and mobile scenarios.

The PFD portable oil filter machine, with its lightweight design, enables unrestricted mobile operation without the need for fixed installation and can be quickly put into use. The multi-stage progressive filtration structure ensures filtration accuracy and avoids premature clogging of the filter element. The whole machine has low energy consumption and strong adaptability, and ordinary on-site operation and maintenance personnel can operate it without complex training. The filter element replacement steps are designed conveniently, and the entire replacement process can be completed within 10 minutes. The later operation and maintenance threshold and usage cost are greatly reduced, and it can adapt to various needs from ordinary coarse filtration to high-precision fine filtration, balancing practicality and economy.

If the PFD portable oil filter does not produce oil or has a low oil output during use, priority should be given to checking whether there is any air leakage or blockage in the oil inlet pipeline, and then confirming whether the filter element is blocked due to impurity accumulation. After cleaning or replacing the filter element, it can be restored; If the noise increases abnormally during operation, check whether the connecting shaft of the oil pump remains concentric, whether the fixing bolts are loose, investigate the air mixed in the oil, and complete the exhaust to alleviate it; If the oil filtering effect significantly decreases, it is necessary to check whether the filter element has reached the service life, confirm that there is no leakage in each sealing part, and replace the corresponding filter element to restore performance; If the temperature of the motor rises abnormally during operation, it is necessary to avoid long-term overload operation. Operate according to the calibrated head parameters of the equipment, and if necessary, use intermittent operation mode to improve.
